Detailed Explanation

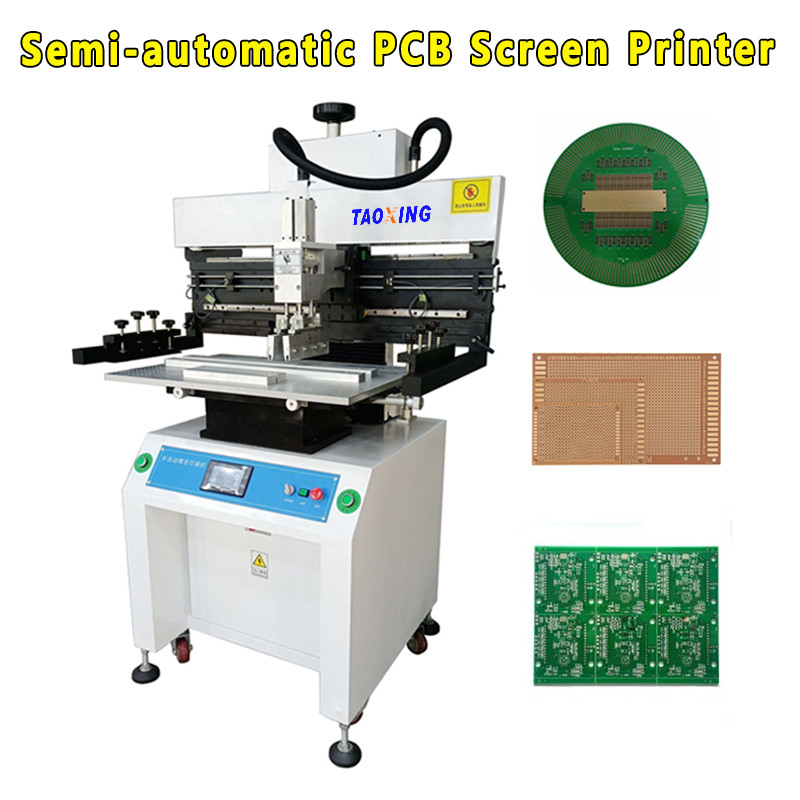

Equipment requirements for electronic screen printing are demanding. CCD registration is essential for aligning multiple layers on PCBs and thick film circuits. CooPrinter's CCD-registered machines achieve 0.01mm precision, enabling fine-line printing down to 0.1mm width. The machines use high-tension stainless steel mesh screens (200-400 mesh) that maintain dimensional stability under repeated squeegee passes. Servo-driven squeegee control ensures consistent pressure and angle, critical for uniform paste deposition.

Ink and paste selection depends on the application. Conductive silver pastes create circuit traces on membrane switches and touch panels. Solder pastes deposit solder bumps for SMD assembly. Dielectric inks create insulating layers between conductive traces. Ceramic pastes (gold, platinum, ruthenium) are used for thick film resistors and sensors. Each paste requires specific mesh count, emulsion thickness, and squeegee hardness for optimal transfer.

Environmental control is critical. Temperature must be maintained at 20-25 degrees Celsius and humidity at 50-60% RH to prevent paste viscosity changes. Dust-free environments (Class 100,000 or better) prevent contamination that causes short circuits or open traces. CooPrinter's electronics-grade machines include environmental enclosures and anti-static features. With China's screen printing market at 587.3 billion yuan in 2024 and electronics accounting for 38.5%, CooPrinter's 10,000+ installed units include extensive electronic printing applications worldwide.
