New Design 600mm Size UV Curing Drying Tunnel Conveyor Machine For Screen Printing Program System
- group name
- UV Curing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-UV600-A
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 15:38:05 GMT
Paramtents
Rated voltage / light power 380V/3KW×2pc
Belt Width 600mm
Convey speed m/min 5~25
Belt Size W600*L2500mm
Outside dimension 2500*880*1350mm
Weight 220kgs
Packging & Delivery
- 260cm x100cm x140cm
-
Min Order1 set
Briefing
UV curing machine is mainly used for curing ink on printed products to improve the color fastness of the pattern.
Detailed
Introduction UV Curing Drying Machine
This UV curing machine is used in cell phone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting,kinds of UV paint, IMD injection products curing. Moreover, it also can be used to cure electronic components,
liquid crystal film, terminal gumming, cell phone parts sticking and LCD etc.
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
Main parameters
Product name: UV curing machine
Voltage: 380V
Power: 6kW
Dimension(L*W*H): 2500*880*1350mm
Heating Method: Electric Heating
Material: SUS304
After sales Service Provided: Online support
After-sales warranty: one year
Keywords： uv dryer conveyor for pipe
Features and Performance
1) There are 2 sets of UV light source systems, Please utilize them according to the detailed requirement.
2) The imported mesh belt conveyor, it is enjoys precise production, smooth running , and restful.
3) The speed of conveyor is adjustable, it can be adjusted any reasonable speed you need.
4) Precise and imported photo spot, high reflective lampshade, quick drying.
5) The illuminating height of UV shade is also adjustable.
6The operating current of UV lamps is shown outside so as to control the working status.
7) There is a heat-extraction system to keep a high-efficiency working environment .

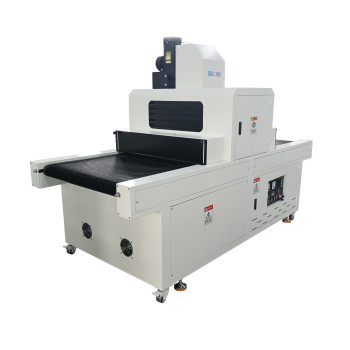

Appearance pictures
Application
Plastic bag
Plastic tool ruler
Membrane Switch
Maintenance and Care Precautions
The warranty time is one year. Under warranty, if is according to the introduction of the description of the use of case, any damage to the product, we will provide free maintenance service or free replacement, but need customer pay for the freight from China to local place. If you need our engineers to help, will be paid by customer of travel back and forth. Outside the warranty period, we continue to provide lifetime maintenance services.
Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port
