Hot Melt Powder Coating Machine For Heat Transfer Stickers
- group name
- Hot Melt Powder Dusting Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-SF80S
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:49:28 GMT
Paramtents
Transmission belt width 800mm
Width of Power coating 650mm
Thickness of material 1~5mm
Voltage AC380V
Weight 3500KG
Application area plastic film , label roll
MAX. POWDER COATING 2 Kg/㎡
POWDER RANGE 60-300 m
MAX. BELT SPEED 20m/min
Packging & Delivery
-
Min Order1 set
Briefing
Detailed

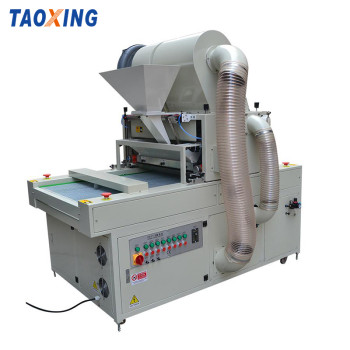

The hot melt powder coating machine is a post-printing equipment that replaces the traditional manual hot melt powder sprinkler. It is suitable for the hot melt powder sprinkler process on transfer products such as clothing trademarks, heat transfer, wallpaper, paper, film, etc. It has the function of powder sprinkler and residual powder recovery in one go, and is easy to use, flexible to adjust, high in work efficiency, and free of dust pollution. All transmission parts of the machine are frequency-controlled and can be directly connected to the fully automatic screen printing machine, achieving perfect results for the hot melt powder sprinkler process on paper, film, wallpaper, etc. with high surface requirements. If required by the process, the drying equipment can be directly connected to the back of the machine.
★Application
| Model: TX-SF80S | Belt width: 800mm |
|---|---|
| MAX. SHEET WIDTH: 600MM | MAX. THICKNESS: 5MM |
| MAX. POWDER COATING: 2 Kg/M2 | POWDER RANGE: 60-300 m |
| TOTAL POWER: AC380V / 4.1KW | RATED VOLTAGE: AC380V , |
| MAX. BELT SPEED: 20m/min | Weight: 3500KG |
★MAIN FEATURES:
