Manual Flat Screen Printing Machine TX-XQ5070 | Small Screen Printer Manufacturer

group name: Manual Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-XQ5070

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Tue, 04 Nov 2025 15:56:41 GMT

contact supplier

Paramtents

Max printing area ≤400×600mm
Table size 500x700mm
Max screen frame 600x900mm
Printing thickness 0-25 mm
Worktable Displacement ±5mm
Power Supply AC220V/400W
Machine Dimension L850*W600*H1050mm
Machine Weight 120KG

Packging & Delivery

90cm x70cm x119cm
Min Order1 set

Briefing

The manual screen printing machine has the characteristics of small footprint, labor saving, and accurate overprinting.

Detailed

Introduction of Manual screen printing machine table

The suction manual screen printing machine is suitable for printing PVC, PET film, glass, plates, metal and other materials. It has the advantages of small footprints, labor saving and accurate overprinting. The screen plate can be fine-tuned front and back, up and down, left and right, and the positioning during overprinting is accurate and convenient.

Made of imported stainless steel and alloy steel, the parts are made of high-grade electrostatic spraying and high-grade electroplating technology.The stainless steel tabletop is equipped with an air pump, suitable for various flat color screen printing, with strong suction, convenient operation and accurate positioning, and can be freely adjusted up and down, left and right, front and back. It is the most ideal printing equipment for small and medium-sized electronic factories and processing plants.

Main performance

① Positioning method: three-side positioning or hole positioning.

② Adjustment method: manual fine adjustment.

③ Adjustment direction: X direction, Y direction, Z direction.

④ The screen clamp that fixes the screen frame can be freely extended and retracted, suitable for large and small screen printing, one machine for multiple uses.

⑤ The screen clamp head can be raised and lowered, suitable for substrates of different thicknesses.

⑥ Five adjustment devices, fast and accurate adjustment of the plate.

⑦ Equipped with a safety automatic protection device.

Specification of Manual flat screen printing machine

Model			TX-XQ5070
Table Size			500x700mm
Substrate Thickness			0-25 mm
Max Printing Area			450×650mm
Min Printing Area			100x150mm
Productivity			400 pcs/h
Max Frame O/D Size			600x800mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			220V/400W
Air Exhaustion			15L/min
Machine Dimension			L850W60H1050mm
Machine Weight			120kg

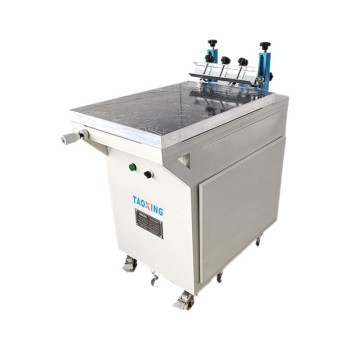

Machine image

Printing samples of Manual flat screen printing machine

Plastic bag

Glass Panel

Metal nameplate
