Servo Flat Screen Printing Machine with High Printing Precision TX-3050SF

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-3050SF

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Tue, 04 Nov 2025 15:56:40 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 800pcs/h
Maximum mesh frame size 500*700mm
Printing size 300*500mm
Voltage / power 220V/2.5KW
Dimensions 900*600*1650mm
Use Paper Printer, Label Printer, Card Printer, Tube P
Printing Thickness ≤450mm

Packging & Delivery

Min Order1 set

Briefing

It is suitable for screen printing of permanent magnets, electronic panels PCB boards and other products.

Detailed

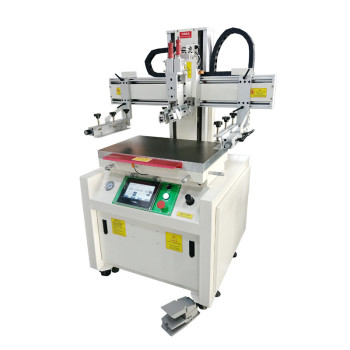

Introduction of TX-3050SF Servo Flat Screen Printing Machine

The servo plane screen printing machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.

Specifications of TX-3050SF Servo Flat Screen Printing Machine

Model: TX-3050SF	Printing area: 300*500mm	Platform size: 400*600mm
Printing thickness: ≤200mm	Printing accuracy: ±0.02mm	Maximum screen frame: 500*900mm
Printing pressure: 0.5-0.7Mpa	Power supply: 220V/2.0KW	Maximum number of idling prints: 1400 (PCS/H)
Gross weight: 230(KG)	Machine size: 9006001650mm	Packing size: 11007501800mm

Features of TX-3050SF Servo Flat Screen Printing Machine

1. Mitsubishi PLC man-machine interface controller makes the operation full of humanization.

2. Vertical structure, the screen frame lift up and down, and the head printer move left and right.

3. Printing and lift of screen frame adopt independent driver, ensure the coordinating action, the stable and adjustable speed.

4. Panasonic servo system drives printing, photocell eye control the printing travel, independent adjustment.

5. Micro registration handle in horizontal and vertical direction make more precise and convenient color registration.

6. Manual, semi auto and auto printing mode are available to choose. The digital control of interval time in auto printing mode can be set from 1 to 9 seconds.

7. Independent printing head up-and-down movementdevice makes the installation and disassembly of scraper, ink blade, and screen frame more convenient.

8. Side clamps adjusting device make the adjustment of screen frame easier.

9. Screen distance adjusting hand wheel can adjust the screen frame quickly.

10. Safety protection device is equipped to ensure the safety of operator.

Machine Details Display

Printing samples
