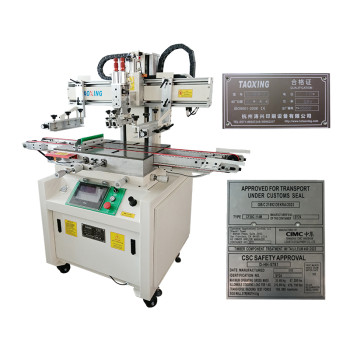

Plate Servo Screen Printing Machine with Auto Positioning Function | TX-3050SF-A
- group name
- Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-3050SF-A
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 04 Nov 2025 15:56:42 GMT
Paramtents
Model TX-3050SF-A
Max printing area 250*450mm
Table size 400*600mm
Printing Speed 500-800 pcs/h
Max screen frame 500*900mm
Work-Piece Thickness ≤20mm
Power Supply AC220V/2.2KW
Machine Dimension 1150*950*1570mm
Machine Weight 250KG
Printing pressure 0.5-0.7Mpa
Packging & Delivery
- 130cm x110cm x160cm
-
Min Order1 set
Briefing
This Servo Screen Printing Machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.
Detailed
Introduction Servo positioning plate flat screen printing machine
Servo positioning plate flat screen printing machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.
★Main performance
①Mitsubishi PLC program control circuit, human-machine interface control, and user-friendly operation.
② Vertical structure, the screen plate moves vertically up and down, and the printing head moves left and right.
③Printing and screen lifting adopt independent driving sources, with coordinated movements and stable and adjustable speed.
④Panasonic servo system drives the printing tool holder, and the photoelectric eye controls the stroke and adjusts independently.
⑤Printing is driven by Panasonic servo motor, with smooth movement.
⑥The printing platform is equipped with precision fine-tuning handles in the horizontal and vertical directions, allowing precise fine-tuning and easy color registration.
⑦ Equipped with three printing modes: manual/semi-automatic/fully-automatic, automatic printing indirect time digital control (1~9 seconds).
⑧Independently designed machine head lifting device, scraper/return knife, screen loading and unloading and screen cleaning are convenient.
⑨The left and right net clamp arms are equipped with plate spacing adjustment devices for easy adjustment.
⑩The angle and balance of scraping and ink return can be adjusted.
⑪The printing platen adopts a vacuum suction work surface to facilitate the fixation of printing sheets.
Specification Servo positioning plate flat screen printing machine
Model | TX-3050SF-A | |||||||
Table Size | 400*600mm | |||||||
Substrate Thickness | ≤20mm | |||||||
Max Printing Area | 300*500mm | |||||||
Min Printing Area | 100x200mm | |||||||
Printing speed | 500-800 pcs/h | |||||||
Max frame size | 500*900mm | |||||||
Printing precision | ±0.02mm | |||||||
Power Consumption | AC220V/2.2KW | |||||||
Printing pressure | 0.5-0.7Mpa | |||||||
Machine Dimension | 1150*950*1570mm | |||||||
Machine Weight | 250kg | |||||||
Application Servo positioning plate flat screen printing machine
Metal nameplate
Aluminum plate
Printed circuit board
Machine Details
Why Choose TAOXING
Industrial Precision Screen Printing Equipment Manufacturing - TAOXING
TAOXING Specialty Screen Printing Machine is a leading manufacturer and supplier of specialty screen printing machines in China, with more than 10,000 devices installed and running in dozens of industries.
We have developed a number of patents and proprietary products, and continue to provide cost-effective and simple solutions for automating the flat and cylindrical screen printing production process in a variety of applications, including glass, electronics, bottles, ceramics, automobiles, printed advertising, etc.
TAOXING has been providing customers with professional screen printing machinery and its related equipment. With advanced technology and 20 years of experience, TAOXING ensures that every customer's needs are met.
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality,reliability, productivity and the competitiveness of our products and services.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on
your requirements.
