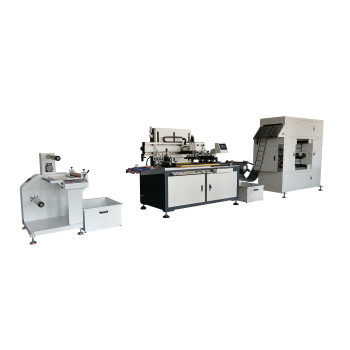

Full Automatic Roll to Roll Screen Printing Machine for Ceramic Decal

group name: Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-5080SP

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:49:49 GMT

contact supplier

Paramtents

Model TX-5080SP
Max printing area 500X800mm
Table size 500x700mm
Printing Speed 400Pcs/h
Max screen frame 750x1080mm
Stacking Height 300mm
Work-Piece Thickness 0.1-2mm
Machine Weight 2200kg
Worktable Displacement ±5mm
Power Supply AC380V/50Hz
Machine Dimension 3500*1100*2050mm
Machine Weight 950KG

Packging & Delivery

360cm x120cm x208cm
Min Order1 set

Briefing

This machine is widely used in PET, OPP, PVC, IMD ,transfer paper (film), floor heating film, geothermal film, electrothermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, aluminum foil and copper foil this roll material silk screen printing, drying, and collectting.

Detailed

Introduction Fully Automatic Roll To Roll Screen Printing Machine

Fully automatic CCD screen printing machine

Main Feature

①Feeding adopt the latest computer numerical control servo motor transmit.

②The main transmission parts adopt pneumatic device, around front and after the printing position are controlled by photoelectric eye tracking and controling, so that the machine will have high accuracy, stable feeding, automatic counting alarm, convenient adjustment, compact structure, etc.

Main performance

①Multi-color automatic tracking and alignment, Japan Mitsubishi PLC + Germany SK color sensor control system alignment, accurate and stable color registration.

②The material pulling adopts a suction puller with uniform pulling force to solve the problem of material deviation when pulling, effectively reduce material scratches, eliminate the damage to the edge of the material caused by the pressure wheel, and make the overprint of easily deformed materials such as aluminum foil more accurate.

③Printing is automatically calculated, and the machine stops automatically when the set quantity is reached.

④There is an automatic shutdown alarm for no material and machine failure.

⑤The scraper movement is driven by a Japanese servo motor, and the ink return is the same. The printing position and speed can be set separately and arbitrarily. The ink return is uniform, the printing is horizontal, the printing is clear and consistent, and it is not easy to have color difference and missing dots.

⑥It is equipped with an automatic dust removal function to remove dust on the printed product, effectively improving the qualified rate of the product.

⑦It is equipped with a screen-off function. When printing, the screen follows the inclination of the scraper to remove the printed product. When running quickly, the fine dots are clear and not easy to stick to the screen. It is suitable for printing large-area background patterns, glue and other special inks.

⑧This machine is equipped with manual/automatic suction function, and the suction strength is adjustable.

Application Fully Automatic Roll To Roll Screen Printing Machine

Main parameters

Model	TX-R4060	TX-R5080
Maximum screen frame size	700*850mm	800*1150mm
Maximum printing area	400*600mm	500*800mm
Material thickness	0.035-0.4mm	0.035-0.4mm
Feed width	410mm	510mm
Scraper stroke	600mm	900mm
Printing speed	500-750m/h	500-1000m/h
Air working pressure	5kg/cm2	5kg/cm2
Working voltage	3-380V AC	3-380v AC
Mechanical dimensions	240010501700mm	310012001700mm
