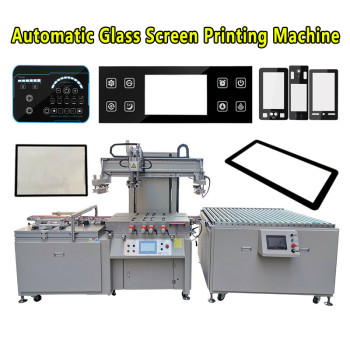

Automatic Glass Panel Flat Screen Printing Machine
- group name
- Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-6090BL
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 04 Nov 2025 20:53:06 GMT
Paramtents
Model TX-BL6090
Max printing area 600*900mm
Table size 400*600mm
Printing Speed 800 pcs/h
Max screen frame 900*1200mm
Glass thick ≤50mm
Voltage /Power 380V/50HZ/2.2KW
Machine Dimension 1950*1350*1700mm
Machine Weight 250KG
Printing pressure 4.0~6.0 kfg/c
Packging & Delivery
- 200cm x150cm x180cm
-
Min Order1 set
Briefing
Flat glass silk screen printer is suitable for glass, such as glass panel, smart home automation glass, kitchen appliance glass etc.
Detailed

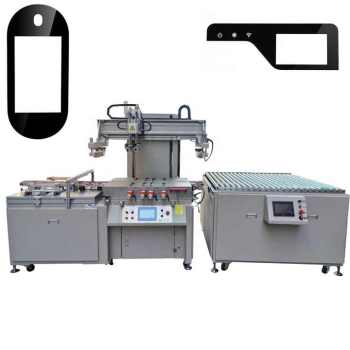

Introduction Automatic glass Screen Printing Machine TX-BL6090
Application:
Automatic glass screen printing machine is suitable for flat surface printing on glass, such as access control glass panel, smart home automation glass, kitchen appliance glass etc. It consists of three parts, input and pre-positioning part, silk screen printing machine part, conveyor and inspection part.
Specifications
Features:
1.Electric vertical lifting, using non-slip synchronous belt for lifting and conveying, fast and stable.
2.Pneumatic off-grid device makes the lifting speed and height adjustable.
3.Adopting the sturdy structural profiles, makes the whole machine print smoothly, supplemented by photoelectric switches to control positioning, accurate positioning and overprinting.
4.The speed is adjusted synchronously by linear guide frequency conversion during printing.
5.With automatic feeding and unloading functions, it can be connected to the drying line to ensure quality and increase output.
6.Exquisite cast aluminum alloy machine head, precision cylinder combination with linear guide block slider guide plate lifting device, easy to change screen and plate washing.
7.The angle of scraping and ink-reclaiming can be adjusted. Pneumatically off-grid prevent the large-area printing products from sticking and printing pattern paste, ensuring the products quality.
Specification Automatic glass Screen Printing Machine
Model | TX-BL6090 | |||||||
Table Size | 900*1200mm | |||||||
Substrate Thickness | ≤50mm | |||||||
Max Printing Area | 600*900mm | |||||||
Printing speed | 800 pcs/h | |||||||
Max frame size | 900*1200mm | |||||||
Printing precision | ±0.02mm | |||||||
Power Consumption | 380V/50HZ/2.2KW | |||||||
Printing pressure | 4.0～6.0 kfg/c | |||||||
Machine Dimension | 1950*1350*1700mm | |||||||
Machine Weight | 1050 KG | |||||||
