Semi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and Bottles
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-400S
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:10:47 GMT
Paramtents
Max. Printing Area φ 120mm
Max Print Area Oval 350mm Arc Length
Max print Length 250mm
Max. screen frame size 650*320mm
Printing Cycle Speed 800pcs/hour
Air pressure 5-6Bar
Application cup,bottle, tube, Steel cylinder, bucket,
Dimensions L94*W83*H135cm
Weight 180KG
Voltage 220V/110V
Packging & Delivery
-
Min Order1 set
Briefing
Semi-automatic cylindrical printing machine is suitable for surface printing on cylindrical objects and oval , such as syringe barrel, milk tea cups, glass bottle, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, gas cylinder, milk tea cups, jars etc.
Detailed
Introduction Semi-automatic Cylindrical screen printing machine
Application for Semi Auto Cylindrical Screen Printing Machine
Semi-automatic cylindrical printing machine is suitable for surface printing on cylindrical objects and oval , such as syringe barrel, milk tea cups, glass bottle, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, gas cylinder, milk tea cups, jars etc
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
Main parameters
Model:TX-400s
Maximum Print Area Round: Ø120 mm
Maximum Print Area Oval: 350 mm Arc Length
Maximum print Length: 250 mm
Maximum Screen Frame Size:650*320 mm
Printing Cycle Speed: 1200 pcs /hour
Electric Source: 110V / 220V 50-60Hz 60W
Air Pressure:5-6 Bar
Dimensions: 96x90x138cm
Weight: 120KG
Features and Performance
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;
4.Printing stroke and speed are adjustable to meet different requirements;
5.auto-balance scraper assures the equalization of printing pressure.
6.Fine adjustment available on worktable’s plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.
7.The scraper can be raised independently, makes it convenient and easy to change and clean the frame.

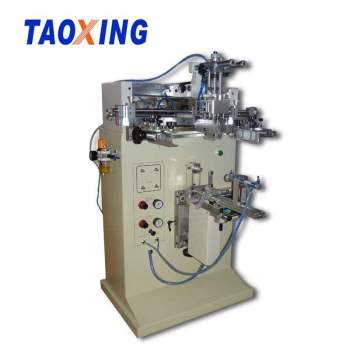

Appearance pictures
Application
Seal Pot
Cosmetic bottles
Plastic flower pots
