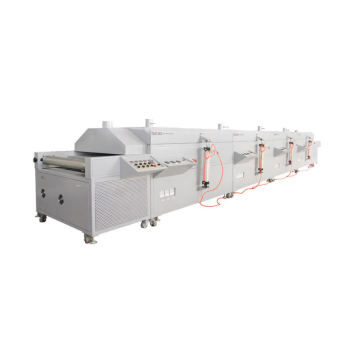

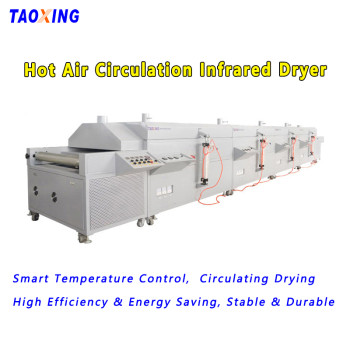

Taoxing IR Conveyor Belt Drying Tunnel Machine TX-IR80L For Screen Printing

group name: IR Drying Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-IR80L

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 21:10:07 GMT

contact supplier

Paramtents

Type IR drying Tunnel
Voltage AC 380V/ 50Hz 3-Phase
Belt width 60cm
Input area 0.5m
Heating area 2m each section, customized
Cooling area 1m or customized
Output Zone 0.5m or customized
Speed 1-10m/min
Max temperature 250 ℃
Max belt Speed 10 Mtr/ Min
Weight 500 KG

Packging & Delivery

Min Order1 set

Briefing

IR Conveyor Belt Drying Tunnel Machine offered find application in the field of screen printing and are extensively used for table prints. Being precision engineered, these are based on advanced process technology so as to deliver long working life. Here,the provision of digital display with digital keypad is also provided with reduced energy costs through use of high volume circulation blower.

Detailed

Introduction IR Drying Tunnel Machine

IR Conveyor Belt Drying Tunnel Machine offered find application in the field of screen printing and are extensively used for

table prints. Being precision engineered, these are based on advanced process technology so as to deliver long working life. Here,the provision of digital display with digital keypad is also provided with reduced energy costs through use of high volume circulation blower.

The general features comprise air handling, use of forced airflow accelerating drying/curing processes, use of high-volume circulation blower that reduces energy costs, separate dedicated blowers for achieving circulation & exhaust control center.

Further, the system also comes with digital keypad with digital display, air-cooled electrical control cabinet for ensuring long life of electrical components as well as conveyor belt made of imported anti static heat-resistant, coated fiberglass coating so as to provide maximum process efficiency standards.
