Semi-Automatic Flat Screen Printing Machine TX-4060ST For Paper And Glass

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-4060ST

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Tue, 04 Nov 2025 15:50:52 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Maximum mesh frame size 400x1000mm
Printing size 400*600mm
Printing Thickness 25mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ /2.1KW
Dimension 1230x950x1580mm
Printing type Automtic Screen Printing Machine
Weight 495 KG

Packging & Delivery

Min Order1 set

Briefing

Transform your printing process with the TX-4060ST Semi-Automatic Flat Screen Printing Machine for paper and glass. Explore our OEM and wholesale services now!

Detailed

Introduction of Semi-automatic Flat Screen Printing Machine

Application:

The semi-automatic flat screen printing machine is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.

Main performance

① Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.

② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.

③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.

④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.

⑤Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.

⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.

⑦With a thimble cylinder, with the manipulator to take material.

Specification

Model			TX-4060ST
Table Size			400x600mm
Substrate Thickness			0-25 mm
Max Printing Area			400×600mm
Printing speed			1000 pcs/h
Maximum screen frame size			400x1000mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /2.1KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			1230x950x1580mm
Machine Weight			495KG

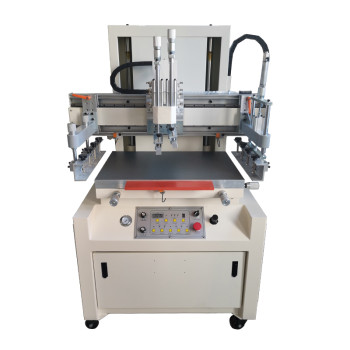

Machine image

Printing samples

Plastic bag

Glass Panel

Metal nameplate

Semi-automatic Flat Screen Printing Machine
