Semi Automatic Screen Printing Machine For Cylinder Head Gaskets

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-5080ST

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:57:12 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Printing size 500*800mm
Table Size 600*900mm
Max Frame Size 800*1200mm
Max printing speed 1000pcs/h
Printing Thickness 30mm
Dimension 1460*1150*1650mm
Weight 50KG

Packging & Delivery

Min Order1 set

Briefing

Be applied to the flat printing for glass, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.

Detailed

Introduction Semi-automatic Screen Printing Machine For Cylinder Head Gaskets

Fully automatic CCD screen printing machine

Application:

Be applied to the flat printing for glass, CD, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.

Main performance

1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.

3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.

5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Specification

Model			TX-5080ST
Table Size			600x900mm
Substrate Thickness			0-25 mm
Max Printing Area			500×800mm
Printing speed			1000 pcs/h
Maximum screen frame size			800*1200mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ / 3.2KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			146011501650mm
Machine Weight			520KG

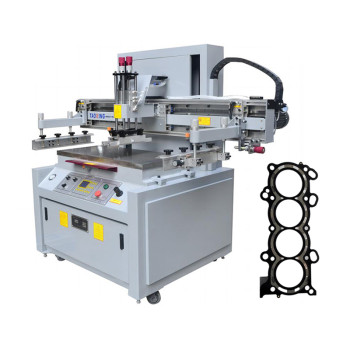

Machine image

Printing samples
