Taoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plate
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-2030S
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:15:32 GMT
Paramtents
Printing Thickness ≤80mm
Max printing area 200*300mm
Air pressure 4.0～6.0 kfg/c㎡
Size of printing table 200*400mm
Rated voltage/Power 220V/50HZ/400W
Max size of screen frame 400*600mm
Printing speed 1000pcs/h
Package size 1000*680*680mm
Weight 100KG
Packging & Delivery
-
Min Order1 set
Briefing
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
Detailed
Introduction
Application
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.Specification
Model: TX-2030S
Printing Thickness: ≤80mm
Max printing area: 200*300mm
Air pressure: 4.0～6.0 kfg/c㎡
Size of printing table: 200*400mm
Rated voltage/Power: 220V/50HZ/400W
Max size of screen frame: 400*600mm
Printing speed: 1000pcs/h
Packing size: 1 000*680*680mm
Weight: 100KG
Main performance
1. Using a microcontroller in conjunction with a touch sensitive panel to compile action programs; The control panel is clear and easy to operate, displaying in both Chinese and English.
2. A four digit counter that counts the number of prints; Clearly display the current production volume.
3. Fully cast aluminum body with a surface coated with metal paint;
4. Double column lifting structure, stable and high-precision;
5. Pneumatic screen washing device; Simple and convenient, no need to manually lift the print head, one click screen cleaning.
The up and down/left and right drive modes of the grid frame/print head are both cylinder driven.
7. Adjustable left and right travel, photoelectric switch limit;
8. The angle of the scraper/ink return blade can be adjusted freely;
9. Scraper constant pressure device to ensure stable pressure during printing;
10. Fine adjust the rotation angle of the workbench to the front, back, left, and right;
11. The mesh frame can be adjusted back and forth, left and right, horizontal, and high and low;
12. Suction stainless steel countertop, capable of adsorbing various thin film products;
13. Equipped with Taiwan CEC hydraulic buffers on the top, bottom, left, and right sides, effectively eliminating printing vibrations;
14. The whole machine runs fast, smoothly, and with low noise;
15. Action mode selection: fully automatic | semi-automatic | manual;
16. Operation mode: panel | foot switch; Two ways of operation

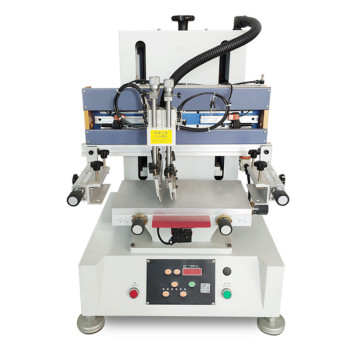

Machine image
Printing samples
Plastic Labels
Ceramic substrate
Metal nameplate
