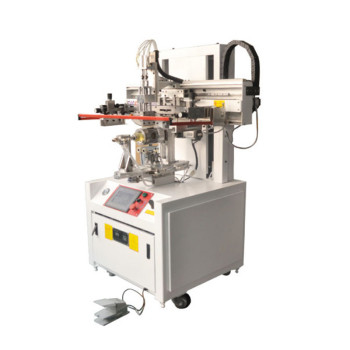

Aluminium Alloy Graphite Piston Printing Machine TX-500SS
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-500SS
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:50:48 GMT
Paramtents
Max printing area 500*200mm
Max frame size 700*350mm
Printing speed 600 - 800 pcs/h
Substrate Diameter 10-160mm
Air pressure 5bar
Max substrate length ≤300mm
Dimensions(L*W*H) L1500* W1200mm* H1540mm
Packging & Delivery
- 120cm x100cm x170cm
-
Min Order1 set
Briefing
Our servo cylindrical screen printing machines are well designed for do multi-color overprint on the round product printing round, oval, square and other special shape containers.
Detailed
Introduction TX-500SS Servo curved screen printing machine
Our servo cylindrical screen printing machines are well designed for do multi-color overprint on the round product printing round, oval, square and other special shape containers.
Main parameters
Model:TX-500SS
Product Diameter: 10-160mm
Air pressure: 5bar
Voltage/Power: 220V/50HZ/500W
Max printing speed: 800(PCS/H)
Max frame size: 700*300mm
Max printing size: 500*200mm
Max product length: ≤300mm
Features:
Compared with ordinary curved surface color registration, it is more convenient that it does not require positioning points, and the infrared light eye has higher positioning and color registration accuracy, which is suitable for enterprise product development and small batch printing.
This screen printing machine is available to print on plastic, glass and metal goods, like cups, plastic bottles, glass bottles, pistons, bottle ROPP caps, jars, plastic flexible cosmetic soft tubes and so on. Widely used for industries of daily chemical, food,beverage, pharmaceutical, chemical, personalized water bottle business, cosmetic bottle manufacture, etc.
Main performance
1. PLC programming, touching screen, simple to operate, easy to use
2. Built in digitalcounts for production output
3. Facilitate to placement of the productbenefit from special design famous air cylinders
4. Servo motor drive rotating and printing head ensure high precision
5. Self-balance scraper technology and ink cover blade
6. Printing Strokeand rotation by digital adjustments, printing speed controllable.
7. Convenient operating the height of the printing beam by hand wheel.
8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper and squeegee;
9. Quality photoelectricity sensor and perfect fault self-detect
10. Metal structure，running steady, foot switch for starter.
Application
Cooperative Customers
