Large Format 70*100cm Oblique Arm Flat Screen Printing Mahine TX-XB7010

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-XB7010

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:46:47 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Printing size 700*1000mm
Max Frame Size 1000*1400mm
Table size 800*1100mm
Power 2.2KW/220V
Air Pressure 0.5-0.6Mpa
Outside Dimension 1900×1450×1400mm
Weight 500 KG

Packging & Delivery

Min Order1 set

Briefing

This TX-XB7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.

Detailed

Introduction of Oblique Arm Flat Screen Printing Machine

Fully automatic CCD screen printing machine

Application:

This TX-XB7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.

Features:

1).Oblique arm structure. Independent drive of printing arm.

2).Vacuum stainless steel printing table and powerful vacuum pump.

3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.

4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.

Specification of Oblique Arm Flat Screen Printing Machine

Model			TX-XB7010
Table Size			800x1100mm
Substrate Thickness			0-25 mm
Max Printing Area			700×1000mm
Printing speed			1000 pcs/h
Maximum screen frame size			900x1400mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			220V/50HZ /2.1KW
Printing pressure			0.5-0.6Mpa
Machine Dimension			1900×1450×1400mm
Machine Weight			500KG

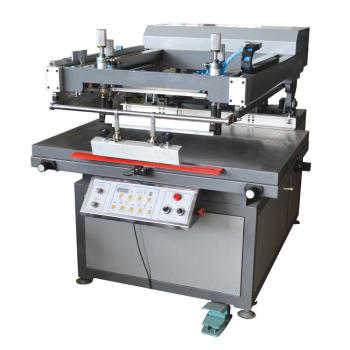

Machine image

Application of Oblique Arm Flat Screen Printing Machine

Non-woven bag

Paper Bag

Carton box
