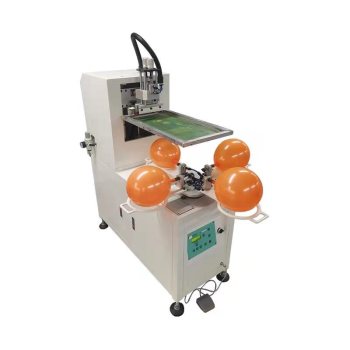

TAOXING Single Color 4 stations Balloon Screen Printer Machine TX-QQ150
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-QQ150
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:32:39 GMT
Paramtents
Max printing area 200*200mm
Printing speed 1500-1800 pcs/hour
Air pressure 0.6Mpa
Voltage 220V/50Hz/ 0.5KW
Dimensions(L*W*H) 1700*1700*1900mm
Weight 134 KG
Place of Origin Zhejiang, China
Automatic Grade Semi-automatic
Packging & Delivery
- 120cm x100cm x170cm
-
Min Order1 set
Briefing
This screen Printing Machine is specially design for Printing Latex balloons. With single color single side printing at one time.
Detailed
Introduction
This screen Printing Machine is specially design for Printing Latex balloons. With single color single side printing at one time.
Main parameters
Model: TX-QQ150
Printing Size: 200*200mm
Voltage/Power: 220V/50HZ/ 0.5KW
Print speed: 1500-1800pcs/hour
Dimension: 1700*1700*1900mm
Weight: 134KG
Features
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3.Cylindrical/conical printing function available;
4.Auto ink squeegee and flooding, worktable elevating to assure easy operation and consistent print quality;
5.Printing stroke and speed are adjustable to meet different requirements;
6.Fine adjustment available on squeegee left/right position to make substrate alignment easy and exact;
7.Fine adjusted available on worktable up/down and plane angle, and frame front/rear, left/right and up/down with high printing precision.
Printing samples
