Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350
- group name
- Vertical Oven
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-KX1350
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:52:00 GMT
Paramtents
Type Drying Oven
Voltage AC 380V/ 50HZ 10KW
Core Components PLC
Heating Method Electric Heating
Material SUS304
Advantage Energy Conservation
Temperature range RT~200℃/300℃
Speed 1-10m/min
TRAY SIZE 650*1000mm *50floors
Weight 420 KG
Dimension 1550*1400*2350mm
Packging & Delivery
-
Min Order1 set
Briefing
Hot Air Circulate Screen Printing Drying Oven for circuit board, PCB ect .It suits for dry Circuit Board, plastic, PCB, Ceramic color paper, Metel nameplate , ect and other product's roast, after printing.
Detailed
Introduction
Hot Air Circulate Screen Printing Drying Oven for circuit board, PCB ect
It suit for dry Circuit Board, plastic, PCB, Ceramic color paper, Metel nameplate , ect and other product's roast, after printing.
Stainless steel material inner wall with thicken Heat insulation asbestos inside
forced air circulation for faster drying
Specification
Name: Precision drying oven
Model: TX-KX1350
Inner size: 900*1200*1600 (drying rack size)
Parameter: Temperature (0-180°C)
Material:
1. Crust:adopt1.2MM thickness cold-rolled steel sheet,the surface is Paint drying.
2. workshop:adopt 1.MM stainless steel.
3. the bottom is flat,with two groove,make it convenient to let drying frame in and out.
Features and Performance
1. Stainless material prevents internal corrosion and allows long durability
2. PID temperature control allows constant temperature distribution
3. Side- to-side circulation of hot air maintains constant temperature distribution in the vertical direction
4. Has a filter mounted at the air inlet
5. Temperature display function (high, medium and low)
Technical Parameter
Temperature control sect:
1. working temperature:normal temperature-150°C.
2.Max. temperature: 180°C.adjustable .
3.temperature difference in the oven:±3°C%.
Electric sect:
1. working voltage:380V 50HZ.
2. digital intelligence temperature control meter,PID adjust.
3. AC contactor controlled.
5. Constant temperature timing setting.
6. alarm function.
7. low-voltage apparatus adapts name brand"Chint"or "Delix".
Heating sect:
1. heating mode:set evenly by two sides.
2. heating component:stainless heating rod .
3. heating power:18KW.

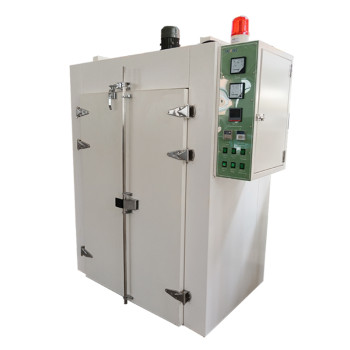

Appearance pictures
Application
Glass Panel
Flexible circuit board
Membrane Switch
