TAOXING Screen Printing Flame Treatment Machine TX-200HY For Plastic Bottles
- group name
- Prepress Processing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-200HY
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:12:18 GMT
Paramtents
Type Flame Treatment Machine
Rated voltage / light power AC220V / 3KW
Weight 200 KG
Application Plastic bottle
Combustion gas compressed air 8KGf/CM2
Speed Electronic stepless speed regulation
Conveyor belt speed 0-10m/min
Dimension 2200×1200×700 mm
Flame width 25~250mm
Packging & Delivery
-
Min Order1 set
Briefing
This TX-200HY flame treatment machine is mainly used for flame treatment on the surface of various bottles and cylindrical PETand PP plastic bottle cup jars can. After the plastic products processed by this machine are printed, the ink can be more firmly attached to the printed objects.
Detailed
Introduction UV Curing Drying Machine
This TX-200HY flame treatment machine is mainly used for flame treatment on the surface of various bottles and cylindrical PETand PP plastic bottle cup jars can. After the plastic products processed by this machine are printed, the ink can be more firmly attached to the printed objects.
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
Main Parameters
Model: TX-200HY
Flame width: 25~250mm
Flame processor fuel: liquefied petroleum gas
Combustion gas: compressed air 8KGf/CM2
Power: 220V/50Hz
Speed: Electronic stepless speed regulation
Conveyor belt speed: 0-10m/min
Machine size: 2200×1200×700 mm
Features and Performance
1. This machine is equipped with a universal cone support, which can meet the requirements of general bottle mouths, and can be equipped with special sizes.
2. The conveying part of the conveyor belt adopts a miniature speed regulating motor, and the speed is adjusted by stepless speed regulation to meet the different requirements of different workpieces.
3. The design of the flame nozzle and the combiner is advanced and unique, and the fuel utilization efficiency is high, which is an energy-saving product.
4. The electroplated aluminum alloy tank, cone support, and bright blue chain plate make this machine more beautiful and suitable.
5. The whole machine has novel structure, reasonable design, convenient operation, movable casters at the bottom, and convenient movement.

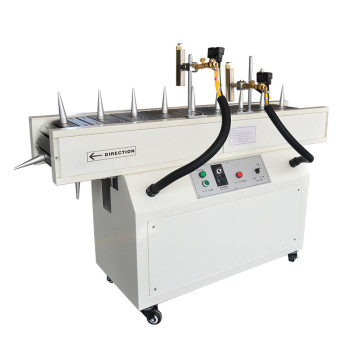

Appearance pictures
Application
