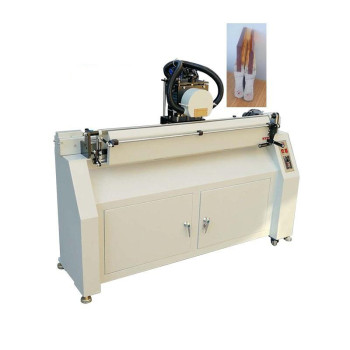

TAOXING Screen Printing Automatic Squeegee Sharpening Machine Scraper Sharpener 1000mm width

group name: Scraper Grinder

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-MD1000A

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Wed, 04 Dec 2024 00:48:43 GMT

contact supplier

Paramtents

Grinding length 1000mm
Grinding motor 3.3KW
Motor Power 120W
Grind angle 0 -45 degree
Vacuum power 1320kW
Adjustment L/R 0-8cm
Adjustment Upper/lower approx 25-30mm
Grinding method Automatic
Power input 220V / 50Hz
Machine dimension 1550x620x1000mm

Packging & Delivery

170cm x80cm x120cm
Min Order1 set

Briefing

Screen printing squeegeee automatic sharping machine
It is automatic machine for screen printing sharping on the PU squeegee Su as 0° to 45 °
Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.
Custom size is available

Detailed

Introduction

Fully automatic CCD screen printing machine

Application:

screen printing squeegeee automatic sharping machine

It is automatic machine for screen printing sharping on the PU squeegee Su as 0° to 45 °

Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.

Custom size is available

1) Automatic grinding

2) Angle adjustable for squeegee

3) Vacuum cleaner for automatic cleaning grinding dust

4) Long-lasting motor, with 2 years warranty

5) Easy operation

Main Features

1) The shape of the whole machine adopts high temperature electrostatic spraying, which has the advantages of corrosion resistance, wear resistance and not easy to aging.

2) The grinding wheel can be adjusted with step-less speed change, stable balance, and automatically change steering with the stroke direction.

3) The grinding stroke adopts a motor + precision linear guide, which alternates back and forth at a constant speed, smoothly sliding.

4) Lever-type glue squeegee, fast and stable clamping, and the squeegee length/grind angle can be adjusted synchronously.

5) Equipped with a dirt vacuum cleaner to suck debris, the suction path will automatically turn with the stroke to reduce industrial pollution, so as to achieve a dust-free and environmentally friendly working environment.

6) There is no sense of pressure during grinding, the squeegee is not deformed, and there is no wavy phenomenon to ensure grinding accuracy.

7) The grinding angle is 0-45 degrees to match various brand squeegees to give full play to the printing efficiency, wide range of use, and easy operation without professional skills.

Detailed Images
