TAOXING Desktop Semi-Automatic Oblique Arm Screen Printing Machine TX-1520XB for Metal Nameplate Printing
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-1520XB
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 06 Dec 2025 17:54:49 GMT
Paramtents
Printing color Single color
Operating mode Semi-automatic
Printing speed 1000 pcs/h
Printing size 150*200mm
Max Frame Size 250*300mm
Table size 120*200mm
Power 220V / 2.2KW
Printing pressure 4.0~6.0 kfg/c㎡
Dimension 600*390*580mm
Printing height 80mm
Printing Thickness ≤50mm
Weight 28KG
Packging & Delivery
-
Min Order1 set
Briefing
This mini screen printing machine is suitable for flat printing of glass, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles and PCB, SMT solder paste, membrane switches and other products in the electronics industry. It is also suitable for gold and silver cardboard and metal sheets. , PVC, etc. as the base material.
Detailed
Introduction of Desktop Oblique Arm Flat Screen Printing Machine
Application:
Suitable for flat printing of glass, CD, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles and PCB, SMT solder paste, membrane switches and other products in the electronics industry. It is also suitable for gold and silver cardboard and metal sheets. , PVC, etc. as the base material.
Features
1.Microcomputer control circuit, printing and screen opening and closing are driven by independent cylinders.
2.The switching of printing/re-inking carriage is driven by a Taiwanese brand air cylinder.
3.There are three modes of manual/semi-automatic/full-automatic, printing indirect time digital control.
Specification
Model | TX-1520XB | |||||||
Table Size | 120X200mm | |||||||
Substrate Thickness | ≤50mm | |||||||
Max Printing Area | 150X200mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 250*300mm | |||||||
Stacking Height | 80mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V / 50HZ | |||||||
Printing pressure | 4.0～6.0 kfg/c㎡ | |||||||
Machine Size | 600mm*390mm*580mm | |||||||
Machine Weight | 28KG | |||||||

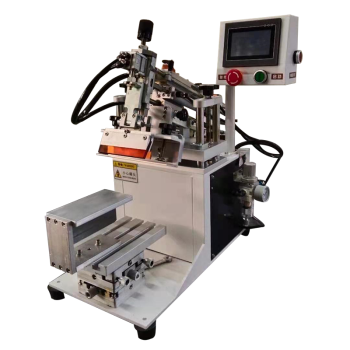

Machine Image
Application of Oblique Arm Flat Screen Printing Machine
Metal nameplate
IC card
Arc lighters
