Taoxing Servo Positioning Curved Screen Printer for Aautomotive Piston Coating
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-500SA
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:52:09 GMT
Paramtents
Max printing area 500*200mm
Substrate Diameter ≤160mm
Printing Speed 800pcs/hour
Max screen frame 700*350mm
Max Printing length 300mm
Machine Weight 272kg
Power Supply 220V,50/60/Hz/100W
Machine Dimension L1040*W1000*H2000mm
Air pressure 4-6kgf/cm2
Application Areas Automobile piston
Packging & Delivery
- 130cm x120cm x200cm
-
Min Order1 set
Briefing
Our cylindrical screen printing machine are also known as circular or cylindrical screen printing machine. Which are well designed
for round, oval, square and other special shape containers curved surface printing, available to print on plastic, glass and metal
bottles. The cylindrical screen printing machines are widely used for industries of daily chemical, food, beverage, pharmaceutical,
chemical, personalized water bottles business, cosmetic bottles manufacture, etc.
for round, oval, square and other special shape containers curved surface printing, available to print on plastic, glass and metal
bottles. The cylindrical screen printing machines are widely used for industries of daily chemical, food, beverage, pharmaceutical,
chemical, personalized water bottles business, cosmetic bottles manufacture, etc.
Detailed
Introduction
This servo-positioned curved screen printer with a raised table is specially designed for printing wear-resistant coatings on the surfaces of automotive pistons.
Main parameters
Model : TX-500SA
Max Printing area: 200*500mm
Air pressure: 5 bar
Rated voltage/Power: 220V/50HZ/1000W
Max printing speed: 800-1000（PCS/H）
Max screen frame: 300*600mm
printing size: Φ150*200mm
Printing length: ≤250mm
Dimension Size : 1150*1000*1900mm
Gross weight : 300(KG)
Features
Compared with ordinary curved surface color registration, it is more convenient that it does not require positioning points, and the infrared light eye has higher positioning and color registration accuracy, which is suitable for enterprise product development and small batch printing.
This screen printing machine is available to print on plastic, glass and metal goods, like cups, plastic bottles, glass bottles, pistons, bottle ROPP caps, jars, plastic flexible cosmetic soft tubes and so on. Widely used for industries of daily chemical, food,beverage, pharmaceutical, chemical, personalized water bottle business, cosmetic bottle manufacture, etc.
Main performance
1. PLC programming, touching screen, simple to operate, easy to use
2. Built in digitalcounts for production output
3. Facilitate to placement of the productbenefit from special design famous air cylinders
4. Servo motor drive rotating and printing head ensure high precision
5. Self-balance scraper technology and ink cover blade
6. Printing Strokeand rotation by digital adjustments, printing speed controllable.
7. Convenient operating the height of the printing beam by hand wheel.
8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper
and squeegee;
9. Quality photoelectricity sensor and perfect fault self-detect
10. Metal structure，running steady, foot switch for starter.

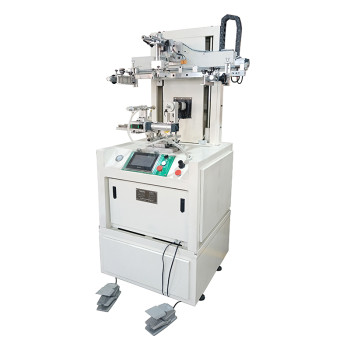

Details pictures
Application
