Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-2030FT

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 18:03:01 GMT

contact supplier

Paramtents

Max Dia ∮240mm
Fixture diameter ∮360mm
Fixture height 100mm
Maximum printing thickness 120mm
Precision platform ±0.03mm
Precision trimming range ±10mm
Printing speed 1200-1500 pcs/h
Applicable air 6-8kg/cm2
Weight About 400kg
Ground to the bottom of the disc 730mm±10mm
Dimensions 720*1000*1950mm

Packging & Delivery

Min Order1 set

Briefing

Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products

Detailed

Introduction

Fully automatic CCD screen printing machine

Application

Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products.

Specification

Model: TX-2030P-4T

Max Dia: ∮240mm

Fixture diameter: ∮360mm

Fixture height: 100mm

Maximum printing thickness: 120mm

Precision platform:±0.03mm

Precision trimming range: ±10mm

Printing speed: 1200-1500time/H

Applicable air： 6-8kg/cm2

Weight：About 400kg

Ground to the bottom of the disc：730mm±10mm

Features

★Main performance

1. Three-station turntable design,Reduce printing waiting time,effectively improve production.

2. Table rotation mechanism is Taiwan Precision 80DT divider,Accurate positioning and fast speed,No noise and vibration,,long service life.

3. The rotating chassis adopts aluminum alloy plate disk,The fixture discs are all made of hard oxidation special process, which is precise and durable, easy to clean;

4. Up and down lifting and left and right printing are controlled by servo motors,The printing speed is adjustable,With imported precision double linear guide,Smooth and precise operation;

5. PLC control+ LCD ,Touch screen operation panel,Sensitive operation,Perfect function;The whole machine is equipped with multiple protection systems to ensure safe and reliable operation;

6. Left and right stroke photoelectric switch limit, manual adjustment of screen printing stroke;

7. The scraper constant pressure device ensures the pressure in the printing is stable;

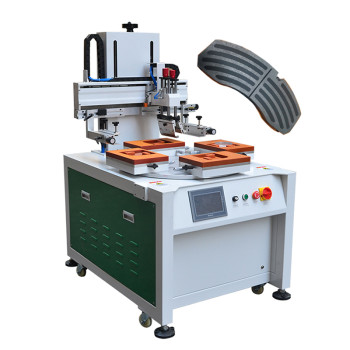

Machine image

Printing samples
