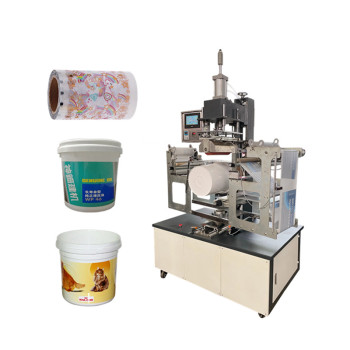

TAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-B
- group name
- Semi-Automatic Hot Stamping Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-HT300-B
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:10:47 GMT
Paramtents
Model TX-HT300-B
Heating transfer size 100*300mm
Power 1.6Kw
Printing speed 5 times/min
Voltage Voltagev
Air pressure 0.4~0.6mpa
Roller size 100*300mm
G.W./N.W 589kgv
Packaging dimension 122*86*225cm
Automatic grade semi-auto
Warranty 1 Year
Packging & Delivery
-
Min Order1 set
Briefing
This heat transfer machine is suitable for surface pattern hot stamping of circular products such as paint buckets, plastic water buckets, garbage bins, etc
Detailed
Introduction Plastic Bucket Heat Transfer Printing Machine
This heat transfer machine is suitable for surface pattern hot stamping of circular products such as paint buckets, plastic water buckets, garbage bins, etc
1. The heat transfer machine adopts PLC control, touch screen display, and stepper motor.
2. The machine adopts pneumatic control to move the heating plate up and down, and requires an external air pump.
3. The hot stamping pressure, temperature, and speed can be adjusted
4. Automatic winding of heat transfer film, cursor alignment device for more accurate hot stamping
Features
1. Equipped with air pressure sensor, the pressure is more balanced. The hot stamping pressure, temperature, speed and time are adjustable.
2. The angle and front and back position of the clamp base can be adjusted.
3. The transfer speed can reach up to 4 seconds per circle.
4. The electronic digital display of the tension control system can be adjusted to prevent the transfer film from being uneven.
Specification
Parameter
Model: TX-HT300-B
Hot stamping width: 300mm
Temperature: 0-400'℃
Air pressure: 0.4-0.6map
Pressure: 0. 5T
Stroke: 150mm
Speed: 8 times/minute
Power supply: 220V 50-60HZ
Power: 3KW
Machine weight: 350KG
Machine size: 1100*900*1800mm
Application
Lubricating oil drum
Paint bucket
Garbage can
