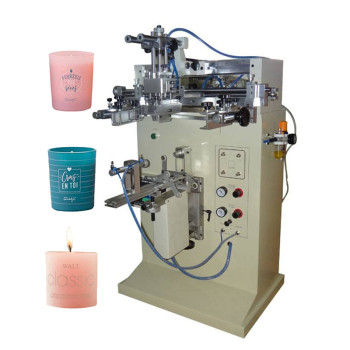

TAOXING Candle Screen Printing Machine Semi Auto Screen Printing Equipment TX-250S-I
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-250S-I
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 04 Nov 2025 20:53:06 GMT
Paramtents
Printing color single color
Operating mode semi-automatic
Printing speed 1200pcs/h
Maximum mesh frame 430*280mm
Max printing area φ70*200mm
Min screen frame 230*140mm
Maximum print Length 250mm
Air pressure: 4.0~6.0 kfg/cm2
Application area cups, bottles, tubes, mugs, jars
Product name Cylindrical screen printing machine
Dimensions(L*W*H) 730*580*128mm
Weight 100 KG
Model TX-250S-I
Packging & Delivery
- 73cm x58cm x128cm
-
Min Order1 set
Briefing
Semi-automatic cylindrical printing machine is suitable for surface printing on cylindrical objects and oval , such as syringe barrel, glass bottle, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, gas cylinder, milk tea cups, jars etc.
Detailed
Semi-Automatic Personalized Cup Cylindrical or Curved Screen Printing Machine
Application
TX-250S-I Personalized Cup Printing Machine is suitable for round, cylindrical, Conical and Oval surface printing, widely apply in industrial products printing, like plastic bottles, glass bottles, plastic cup, glass cup, mugs, cosmetic tubes, plastic bowl, container, stick, brush etc.
Feature
1. Adapt types of flat surface hat, umbrella, etc.
2. Working table up and down
3. Facilitate to placement of the cups
4. High precision axis control movement, the accuracy up to 0.02mm
5. Self-balance scraper technology and ink cover blade
6.Micro-computer control program
7. Built in four counts digital LED count
8. Printing Stroke mechanical adjustments, adjust the speed of integrated circuit digital
Accessories
Specification
|
Product name
|
CUP SCREEN
PRINTING MACHINE |
|
Product model
|
TX-250S-I
|
|
Application area
|
cups, bottles, tubes, mugs, jars
|
|
Printing Speed
|
1200 pcs/h
|
|
Maximum Print Area Round
|
φ70*200mm
|
Min.Screen frame | 230*140mm |
Maximum print Length | 250mm |
Maximum Screen Frame Size | 430*280mm |
Air pressure: | 4.0~6.0 kfg/cm² |
Voltage | 220V/110V 50-60Hz 60W |
Dimensions(L*W*H) | 73x58x128cm |
Weight | 100KG |
Printing Samples
Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port.
