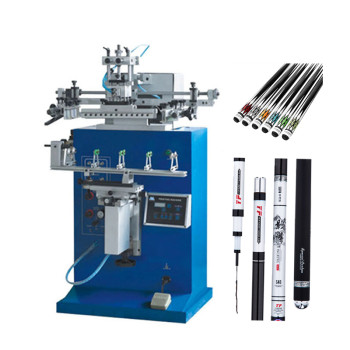

TAOXING Fishing Rod and Long Round Tube Screen Printing Machine TX-125G

group name: Curved Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-125G

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 18:06:43 GMT

contact supplier

Paramtents

Printing color single color
Maximum Printing Area 400*100mm
Max printing speed 1000 pcs/h
Maximum Print Area Round Ø 30mm
Max size of frame 550*300mm
Max. workpiece height ≤800mm
Air consumption 6 bars
Application area tennis table tube, plastic tube, fish long pole et
Dimensions(L*W*H) 73x58x128cm
Weight 100KG
Electric Source: 220V 50HZ 20W

Packging & Delivery

Min Order1 set

Briefing

Baseball Bat cylindrical Screen Printer is suitable for surface printing on cylindrical objects and oval , such as tennis table tube, plastic tube, fish long pole etc

Detailed

Introductions

Application

This long tube curved surface screen printer is suitable for printing products with a longer circumference, such as golf clubs, fishing rods, water pipes, etc., with high-precision printing of surface patterns and texts.

Features

1.Microprocessor control each function with high automation and easy operation;

2.4-digit auto counter built in;

3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;

4.Printing stroke and speed are adjustable to meet different requirements;

5.auto-balance scraper assures the equalization of printing pressure.

6.Fine adjustment available on worktable’s plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.

7.The scraper can be raised independently, makes it convenient and easy to change and clean the frame.

Main parameters

Maximum Print Area Round: Ø30mm

Maximum Printing Area: 400*100mm

Max Size of Frame: 550*300mm

Max. workpiece height: ≤800mm

Printing Cycle Speed: 1000pcs/hour

Electric Source: 220V 50Hz 20W

Air Pressure: 6Ba

Dimensions: 73x58x128cm

Weight: 100KG

Detail Images

Printing Samples
