TAOXING Pneumatic Vertical Flat Screen Printing Machine TX-3050V For Plastic Box and Metal Boxes
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-3050V
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 19:24:19 GMT
Packging & Delivery
-
Min Order1 set
Briefing
TX-3050V pneumatic vertical flat screen printer is suitable for printing relatively high three-dimensional products such as cubic structure sheet metal chassis, square barrels, plastic/metal boxes, etc.
Detailed
Introduction TX-3050V Pneumatic vertical flat screen printer
Application
Specification
Model: TX-3050V
Printing thickness: ≤300mm
Maximum printing area: 250*400mm
Printing pressure: 4.0～6.0 kfg/c㎡
Platform size: 300*500mm
Voltage/power: 220V/50HZ/50W
Maximum screen frame: 400*650mm
Maximum printing times: 1000pcs/h
Body size: 790*640*1550mm
Operation table height: 780mm
Packing size: 850*650*1600mm
Gross weight: 220kg
Main performance
①Stable and reliable microcomputer control
②High-quality sensors
③Convenient and simple foot switch control
④International brand pneumatic components
⑤Advanced air filter
⑥Sturdy parts
⑦Wear-resistant imported shaft sleeves
⑧Independent printing and ink return speed control
⑨Simple operation and easy maintenance

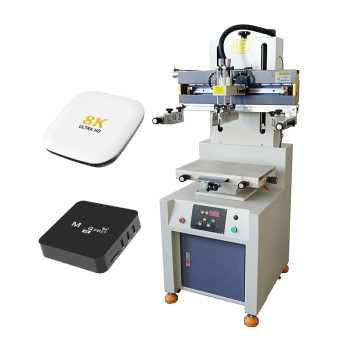

Machine image
Application
Internet Set-Top Box
Network switches
Metal Box
