Automatic Spot UV Varnishing Machine UV Coating Dryer UV LED Curing Machine for Offset Screen Printing
- group name
- UV Curing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-LEDUV800
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:59:01 GMT
Paramtents
Type UV LED curing machine
input speed 5-25m/min
Power Supply 220V
Belt width 800mm
Power rate 3.0KW
Dimensions (L*W*H) 2000*1000*800mm
Weight 160KG
Packging & Delivery
- 260cm x100cm x150cm
-
Min Order1 set
Briefing
UV curing machine is mainly used for curing ink on printed products to improve the color fastness of the pattern.
Detailed
Introduction UV LED Curing Machine
Compared with traditional UV mercury lamps, UV-LED surface light sources have shown great advantages in energy saving and process improvement. Large-area, high-power UV-LED surface light sources will be increasingly widely used. Covers optical device assembly, optical communication component assembly, semiconductor device assembly, medical device assembly, and home improvement industries applicable to point light sources. Printing: UV flatbed printing equipment, UV photo printing, inkjet printing, trademark printing, screen printing and other UV ink varnishes and UV ink drying and curing. PCB: PCB white oil exposure, PCB green oil exposure, PCB character screen printing; architectural home decoration: decorative glass, craftsmanship, ceramic tiles, wallpaper, marble, etc. UV coating and printing; optical fiber: optical fiber ink coloring and tape; for large sizes For the application of surface light source, our company will be equipped with a high-power water-cooled, compressor-water-cooled integrated machine developed by ourselves, which provides a guarantee for long-term, high-power and stable work.
Specification
Main parameters
input speed： 5-25m/min
Power Supply：220V
Belt width：800mm
Power rate: 3000W
Dimensions (L*W*H): 2000*1000*800mm
Weight: 160KG
Features and Performance
1. Configure 1 set of LEDUV light source system.
2. Imported Teflon conveyor belt (for reference only), finely crafted, running smoothly and without noise.
3. Speed regulating motor and governor, stepless speed regulation of conveyor belt, speed regulation of conveying speed according to production conditions.
4. Condenser design, imported high concentrator lampshade, instant drying, very fast speed.
5. The LEDUV lamp has a water-cooled heat dissipation method with a wavelength of 365nm.

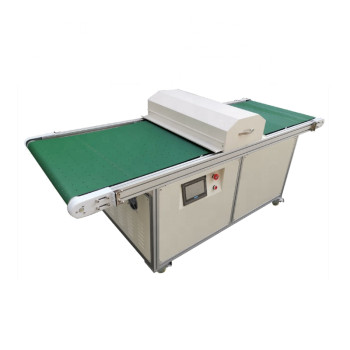

Appearance pictures
Application
Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port
