High Precision Servo Flat Screen Printing Machine TX-4060SF for Square Box
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-4060SF
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 04 Nov 2025 15:56:39 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Maximum mesh frame size 700x1000mm
Max printing area 400*600mm
Printing Thickness ≤450mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 220V/2KW
Dimension 1260*910*1650mm
Drive system Servo motor
Weight 492 KG
Size of printing table 500*700mm
Packging & Delivery
-
Min Order1 set
Briefing
It is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.
Detailed
Introduction
Application:
The semi-automatic flat screen printing machine is suitable for metal box，paper box，wooden box，plastic storage box，glass windows, organic glass, conductive film circuit , acrylic sheet, etc.
Features
1. Mitsubishi PLC man-machine interface controller makes the operation full of humanization.
2. Vertical structure, the screen frame lift up and down, and the head printer move left and right.
3. Printing and lift of screen frame adopt independent driver, ensure the coordinating action, the stable and adjustable speed.
4. Panasonic servo system drives printing, photocell eye control the printing travel, independent adjustment.
5. Micro registration handle in horizontal and vertical direction make more precise and convenient color registration.
6. Manual, semi auto and auto printing mode are available to choose. The digital control of interval time in auto printing mode can be set from 1 to 9 seconds.
7. Independent printing head up-and-down movementdevice makes the installation and disassembly of scraper, ink blade, and screen frame more convenient.
8. Side clamps adjusting device make the adjustment of screen frame easier.
9. Screen distance adjusting hand wheel can adjust the screen frame quickly.
10. Safety protection device is equipped to ensure the safety of operator.
Specification
Model | TX-4060SF | |||||||
Table Size | 400x600mm | |||||||
Printing Thickness | ≤450mm | |||||||
Max Printing Area | 400×600mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 700x1000mm | |||||||
Size of printing table | 500*700mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 280V/50HZ /2.0KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 1260*910*1650mm | |||||||
Machine Weight | 492KG | |||||||

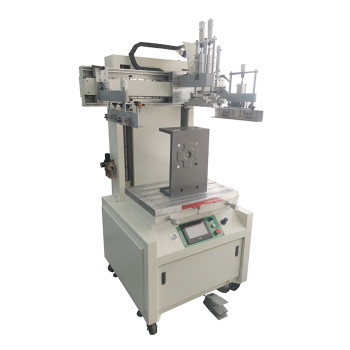

Machine image
Application
Metal chassis
Glass Panel
Metal nameplate
Why Choose TAOXING
Industrial Precision Screen Printing Equipment Manufacturing - TAOXING
TAOXING Specialty Screen Printing Machine is a leading manufacturer and supplier of specialty screen printing machines in China, with more than 10,000 devices installed and running in dozens of industries.
We have developed a number of patents and proprietary products, and continue to provide cost-effective and simple solutions for automating the flat and cylindrical screen printing production process in a variety of applications, including glass, electronics, bottles, ceramics, automobiles, printed advertising, etc.
TAOXING has been providing customers with professional screen printing machinery and its related equipment. With advanced technology and 20 years of experience, TAOXING ensures that every customer's needs are met.
FAQ
Q: Are you a factory or trading company?
A: We’re a professional factory providing screen printing machinery with more than 20years experience. Located in Hangzhou, Zhejiang Prov.
Q: How to get a quotation?
A: Just send us your detail requirement, such as material, size, color, etc.
Q: Can you make the customized or OEM machine?
A: Yes, we have a professional technique team, we can produce the machine as per requested.
Q: How can I know your machine works well?
A: Before delivery, we’ll test the machine working condition and shot the running video to you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we’ll test it using our machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q: Which terms of payment acceptable?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service.
