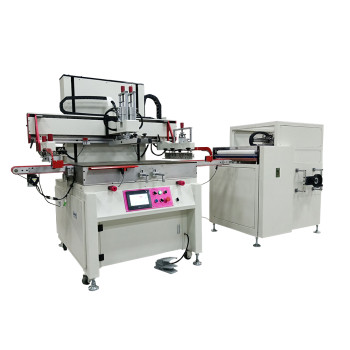

Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates

group name: Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-4060SF-A

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:34:52 GMT

contact supplier

Paramtents

Model TX-4060SF-A
Max printing area 400*600mm
Table size 750*1000mm
Printing Speed 1000 pcs/h
Max screen frame 800*1200mm
Work-Piece Thickness ≤30mm
Power Supply AC380V/3.5KW
Machine Dimension 1520*1200*1740mm
Machine Weight 1000KG
Printing pressure 0.5-0.6Mpa

Packging & Delivery

Min Order1 set

Briefing

This automatic loading flat screen printer is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.

Detailed

Introduction

Fully automatic CCD screen printing machine

This automatic loading flat screen printing machine is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.

Main performance

1. Automatic feeding, automatic dust removal, and automatic positioning printing.

2. Adopting PLC control circuit and touch screen operation panel, it is sensitive to operation and has complete functions. The electrical and pneumatic components are all international brands, with stable product performance and reliable quality;

3. The vertical lifting is driven by variable frequency motor and controlled by inverter, with long life and stable operation;

4. The printing movement is driven by motor, variable frequency speed regulation, and the scraper can be switched freely;

5. The printing platform has high precision, scientific structure, small air resistance, strong vacuum suction force during operation, and the first printing platform adjustment mechanism to solve the problem of difficulty in adjusting the thickness of the substrate of similar models;

6. The first mechanical synchronous off-grid mechanism of similar models improves the printing suitability of the whole machine. Equipped with multiple protection systems to ensure safe operation.

Specification

Model			TX-4060SF-A
Table Size			750*1000mm
Substrate Thickness			0~30mm
Max Printing Area			400*600mm
Min Printing Area			250*300mm
Printing speed			1000pcs/h
Max frame size			800*1200mm
Conveyor belt size			L2130*W 130mm
Loader size			length 1080width 12001300mm
Loading bin size			length 800width 600lifting height 350mm
Printing precision			±0.03 ㎜
Power Consumption			AC380V/3.5KW
Printing pressure			0.5-0.6Mpa
Machine Dimension			152012001740mm
Machine Weight			1000KG

Machine Details

Printing samples

Metal nameplate

Aluminum plate

Printed circuit board

TX-4060SF-A Parameters
