Servo Curved Screen Printing Machine TX-800SA For Truck Piston

group name: Curved Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-800SA

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Tue, 04 Nov 2025 15:50:50 GMT

contact supplier

Paramtents

Max printing area 200*700mm
Substrate Diameter ≤180mm
Printing Speed 200pcs/hour
Max screen frame 400*1000mm
Max Printing length 200mm
Machine Weight 332kg
Power Supply 220V,50/60/Hz/100W
Machine Dimension 1450*950*1850mm
Air pressure 4-6kgf/cm2
Application Areas Automobile piston

Packging & Delivery

Min Order1 set

Briefing

This servo curved screen printer is specially designed for printing wear-resistant coatings on large vehicle pistons.

Detailed

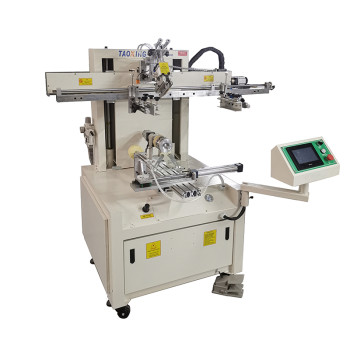

Introduction TX-800SA Servo curved screen printing machine

This servo curved screen printer is specially designed for printing wear-resistant coatings on large vehicle pistons.

Main parameters

Model : TX-800SA

Max Printing area: 200*700mm

Air pressure: 5 bar

Rated voltage/Power: 220V/50HZ/1000W

Max printing speed: 200（pcs/h）

Max screen frame: 400*1000mm

printing size: Φ180*300mm

Printing length: ≤250mm

Dimension Size : 1450*950*1850mm

Gross weight : 332(KG)

Main performance

① PLC controls the operation of each function, with high degree of automation and simple and convenient operation.

② Built-in four-digit automatic counter.

③ Automatically scrape ink, return ink, lift and lower the printing plate, which not only simplifies the operation but also ensures the stability of printing quality. ④ The printing stroke and speed are adjustable to meet different printing requirements.

⑤ Automatically balanced scraper to ensure balanced printing pressure.

⑥ The workbench and screen frame can be fine-tuned front and back, left and right, up and down, with high printing accuracy, convenient and fast adjustment. ⑦ The scraper part can be lifted independently, and the screen frame can be replaced and cleaned easily and conveniently.

⑧ Lifting servo motor control to achieve one-button adjustment of the screen spacing.

⑨ The left and right motors and the product rotation motor are servo-driven, which is more accurate.

Application TX-800SA Servo curved screen printing machine
