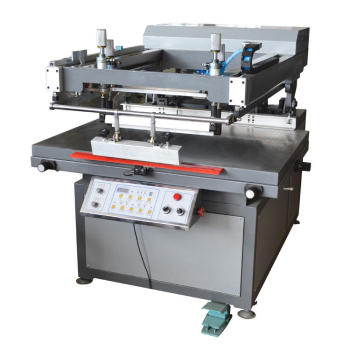

Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine TX-XB7010 for Paper Box

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-XB7010

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Sat, 06 Dec 2025 05:18:37 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 1000 pcs/h
Printing size 700*1000mm
Max Frame Size 1000*1400mm
Table size 800*1100mm
Power 2.2KW/220V
Air Pressure 0.5-0.6Mpa
Outside Dimension 1900×1450×1400mm
Weight 500KG
Printing Thickness ≤30mm

Packging & Delivery

Min Order1 set

Briefing

This TX-7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.

Detailed

Introduction of Oblique Arm Flat Screen Printing Machine

Fully automatic CCD screen printing machine

Application:

This TX-XB7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.

Features

1).Oblique arm structure. Independent drive of printing arm.

2).Vacuum stainless steel printing table and powerful vacuum pump.

3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.

4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.

Specification of Oblique Arm Flat Screen Printing Machine

Model			TX-XB70100
Table Size			800x1100mm
Printing Thickness			30 mm
Max Printing Area			700×1000mm
Printing speed			600 pcs/hour
Maximum screen frame size			1000*1400mm
Maximum print Length:			1000mm
Worktable Displacement			±5mm
Power Consumption			220V/50HZ /2.1KW
Printing pressure			0.5-0.6Mpa
Machine Dimension			1900×1450×1400mm
Machine Weight			500KG

Application of Oblique Arm Flat Screen Printing Machine
