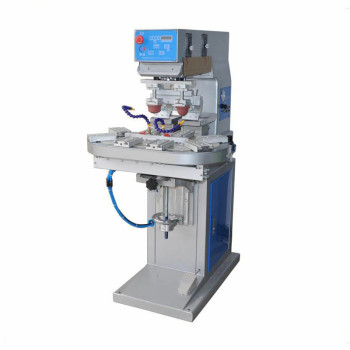

Semi-Automatic Two-color Rotary Ink Pad Printing Machine TXZ－250-100 For Remote Control
- group name
- Semi-Automatic Pad Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TXZ－250-100
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:32:46 GMT
Paramtents
Operation Semi-Automatic
No. of Color 2 Color
Plate size 150*100mm
Ink cup Dia 90mm
Power 220V/50HZ/50W
Max Printing Speed 1200pcs/hr
Air Pressure 6 Bar
Machine Dimension 1220*950*1380mm
Machine Weight 255kg
Packging & Delivery
-
Min Order1 set
Briefing
Sealed Ink Cup Pad Printer with the latest nano-technology oil cup made of tungsten steel cutting ring, the surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction that this section of the machine than the traditional oil pan machines more environmentally friendly and more fuel
efficient.
efficient.
Detailed
Application
Two-color pad printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printed materials For example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface of the product arc printing. Simple operation, easy maintenance and repair, lower prices for most used by customers
Product Parameters
Operation: Semi-Automatic
No. of Color: 2 Color
Plate size: 150*100mm
Ink cup Dia: 90mm
Max Printing Speed: 1200pcs/hr
Power Voltage: 220V/50Hz
Power Consumption: 150W
Air Pressure：6 Bar
Machine Dimension：1220*950*1380mm
Machine Weight：255kg
Main Features
·Advanced computerized system control
·pneumatically driven ，can adjust the movement speed of each part
·Built-in LED digital counter
·Light-weight, strong machine frame
·Ink cup, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink cup and pads are easily installed and dismounted for quick cleaning
·The ink cup promote by cylinder ,can be slide more smoothly
Printing sample
