Taoxing Four-column Sliding Table Screen Printing Machine TX-1224ST-P

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-1224ST-P

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:50:22 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing size 1200*2400mm
Table Size 1400*2600mm
Max Frame Size 1600*2800mm
Max printing speed 800pcs/h
Printing Thickness ≤30mm
Dimension 1160*910*2150mm
Weight 1000 KG
Power 380V/50HZ /5.6KW
Application flat glass , door, wood , yoga mat screen printing
Precision ±0.05mm
Precision fine-tuning range ±10mm
Air pressure 4.0～6.0 kfg/c㎡

Packging & Delivery

215cm x116cm x91cm
Min Order1 set

Briefing

This large-scale glass screen printing machine can be used for large-scale product printing processes such as large-scale single-color glass printing, large-scale multi-color glass printing, etc. Since the work surface of this printing machine is very large, it is very suitable for some large-scale products to choose this type of machine.

Detailed

Introduction

Fully automatic CCD screen printing machine

Application:

Features

1. The ink on the surface of the printed product is very uniform.

2. Because the work surface is relatively large, the production staff has a very large space for operation, and it is very convenient to take and discharge materials.

3. The function of the machine is very perfect, fully satisfying the diversified operation.

4. The screen printing of single-color glass and multi-color glass is diversified.

5. The control system adopts Japan's Mitsubishi PLC and electrical components, and the photoelectric sensor adopts Taiwan brand with high precision and fast response. The operating environment adopts the man-machine interface, which can be upgraded with the upgrade of the product, and is equipped with a fault maintenance prompt system, which is convenient for maintenance.

6. The pneumatic components of the printing and the whole machine are composed of Taiwan Airtec pneumatic components, which are durable and stable.

7. The printing motion system adopts the brand linear precision guide rail and runs with the wear-resistant polyester synchronous belt, which has no noise, long life and stable operation.

8. The printing drive adopts frequency conversion deceleration motor, stepless speed regulation, and the speed of scraper and oil return knife can be freely set.

9. The printing table adopts the combination of aluminum alloy profiles, honeycomb combination, and the surface is bonded with stainless steel sheets. It is processed by special technology. The surface is flat and smooth. It is equipped with suction and blowing devices to ensure strong suction printing.

10. Pneumatic locking is adopted for all printing screen frame locking, and auxiliary manual locking is used to prevent screen shifting caused by unstable air pressure. It is easy to operate, labor-saving and fast. The screen frame adjustment is provided with a fine-scale indication, and all use a fine-scale handle. The adjustment is precise, convenient and fast.

11. There are 2 high-pressure suction fans in the printing panel, and a silencer is installed, which has strong suction and low noise.

12. The squeegee seat can be moved independently according to the printing area. The squeegee and ink-covering knife use quick ink filling, and can be adjusted at an angle of 0-45 degrees. The squeegee adopts a super-induction constant pressure structure. After the pressure is set, the The thickness of the printed matter can be automatically stabilized to assist.

13. Synchronous off-plate structure design cooperates with the scraping action to improve the plate frame synchronously, without generating shock waves and elastic fatigue. When scraping various inks of different viscosities and different tension screens, no shadows, deformation, sticking, and import separation will occur. Plate cylinder, suitable for all kinds of high-precision printing. (Can adjust the spacing with the size version)

14. Continuous scratch printing can be set for 1-2 times without moving the panel, which can make the printed object more three-dimensional.

15. The whole machine is equipped with a safety emergency stop button and multiple safety protection devices to ensure the personal safety of the operator.

Specification

Model			TX-1224ST-P
Printing Table Size			1400*2600mm
Printing Thickness			≤30mm
Max Printing Area			1200*2400mm
Printing speed			300 pcs/h
Maximum screen frame size			1600*2800mm
Stacking Height			300mm
Worktable Displacement			±10mm
Power Consumption			380V/50HZ /5.6KW
Printing pressure			6～8 kfg/c㎡
Machine Dimension			11609102150mm
Machine Weight			1000KG

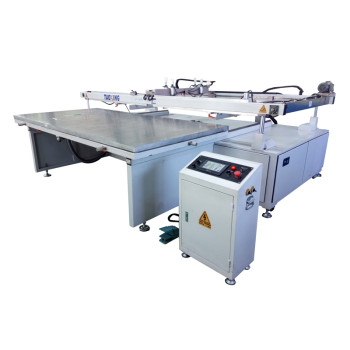

Machine image
