Taoxing Semi-Automatic Flat Screen Printing Machine TX-4060ST-T For Electric Meter Box

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-4060ST-T

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 18:05:34 GMT

contact supplier

Paramtents

Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Maximum mesh frame size 700x1050mm
Printing size 400*600mm
Printing Thickness ≤100mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ /2.1KW
Dimension 1230x950x1580mm
Printing type Automtic Screen Printing Machine
Weight 495 KG

Packging & Delivery

Min Order1 set

Briefing

The electric T-slot flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.

Detailed

Introduction TX-4060ST Electric Meter Box Screen Printing Machine

Fully automatic CCD screen printing machine

Application:

The electric meter box flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.

Features:

① Vertical structure, the vertical lifting and lowering of the screen is electric, and the left and right movements of the printing head are driven by variable frequency electric drives.

② SCM control circuit, independent driving source for printing and screen lift.

③ Pneumatically control the lifting and lowering of the printing knife frame, and the photoelectric eye controls the stroke, which can be adjusted independently.

④ Manual/semi-automatic/full-automatic three modes are set, and the printing indirect time is digitally controlled.

⑤ Independently designed machine head lifting device, squeegee/return knife, screen loading and unloading and screen cleaning are convenient.

⑥ Double guide column left and right mesh clamp arms, and at the same time, the plate distance adjustment device is installed, which is easy to adjust.

Specification

Model			TX-4060ST-T
Table Size			500*700mm
Substrate Thickness			≤100mm
Max Printing Area			400×600mm
Printing speed			1000 pcs/h
Maximum screen frame size			700*1050mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /2.1KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			12609101650mm
Machine Weight			495KG

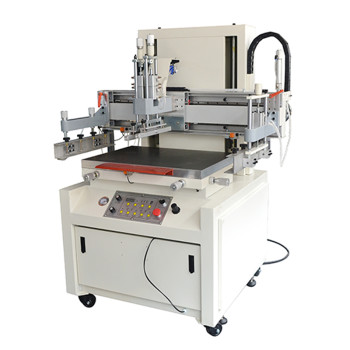

Machine image

Printing samples
