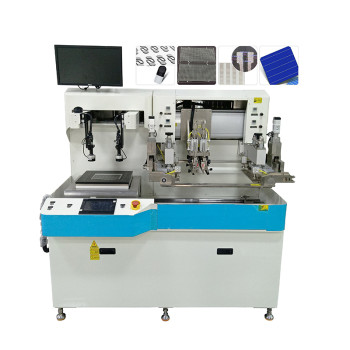

TX-250A-CCD Semi-automatic Thick Film Screen Printing Machine
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-250A-CCD
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:46:40 GMT
Paramtents
Printing size 250*250mm
Printing table size 350 × 350 mm
Max Screen frame size 550 × 550 × 25 mm
Height from platform to ground 950mm
Scraper stroke MAX 390m
Scraper speed 5~ 350mm /sec
Printing pressure 0.005 ~ 0.5MPa( adjustable )
Grid distance 0~20mm
Parallelism between scraper and platform Within 0.01mm
Power supply capacity AC220V 3.5KW
Machine weight About 750kg
Machine size 1400 × 1100 × 1850mm
Packging & Delivery
- 140cm x110cm x180cm
-
Min Order1 set
Briefing
Widely used in touch screen circuits and BM printing, ceramic capacitors, resistors, thick film circuits, ceramic circuits, filters, glass glaze potentiometers, dielectric antennas, ceramic metallization, RFID, sensors (piezoresistive, capacitive) integrated LED lamp holders, piezoelectric ceramic components, LED ceramic substrates, LTCC, MLCC, filters, ceramic thick film circuits, solar silicon wafers, chip components and electronic component printing process manufacturing. (It can realize buried hole printing and through hole printing)
Detailed
Introduction
Application:
Widely used in touch screen circuits and BM printing, ceramic capacitors, resistors, thick film circuits, ceramic circuits, filters, glass glaze potentiometers, dielectric antennas, ceramic metallization, RFID, sensors (piezoresistive, capacitive) integrated LED lamp holders, piezoelectric ceramic components, LED ceramic substrates, LTCC, MLCC, filters, ceramic thick film circuits, solar silicon wafers, chip components and electronic component printing process manufacturing. (It can realize buried hole printing and through hole printing)
Specifications
Platform size: 350*350 mm
Max screen printing size: 550*550*25 mm
Work height / table height：950 mm
Table movement accuracy: 0.005mm
Parallelism between frame botlom and platform: Within 0.02mm
Printing capacity: 5~ 350mm /sec
Air source: 0.6-0.8 MPa 50L / min
Power supply: AC220V 3.5KW
Weight: 750kg
Machine size: 1400×1100×1850mm
Features
1. The printing platform X, Y, θ automatically aligns the “+”, “o” and “ outline ” marks for printing through CCD;
2. This machine is a standard thick film circuit printer, the main features of which are ease of use, high efficiency and high precision;
3. The whole extrusion casting of the machine head adopts full motor design, and the running table, scraper, printing and vacuum are all driven by motors;
Performance:
A.Power mode: Printing pressure, printing frame drive and platform drive use independent power sources and PLC control.
B.Overall structure - the machine body is welded with die-cut steel, the upper surface is overall flat-ground with an accuracy of ± 0.05 , and the head unit is integrally cast.
C.Grid system:
Grid structure—— the grid arms are locked on the overall frame, which is compact and safe.
Grid lifting———— Manual precision adjustment of the grid and platform grid distance lifting, adjustable (0~ 20mm ).
D. Printing system:
Printing guide———— Use Taiwan TBI screw , 10 lead.
Printing/flooding speed – digitally entered and independently adjustable.
Printing stroke————The stroke is set digitally on the touch screen (1~ 390mm ) .
Printing drive————Japanese servo system, screw drive; no creeping at low speed, no jitter at high speed.
Scraping pressure———— controlled by back pressure , Eliminate the scraper's own gravity and precisely control the pressure printing.
E. Platform system:
Platform structure———— U VW platform displacement accuracy ±0.0 05 .
Platform drive——The linear module drives the platform to move forward and backward, with a positioning accuracy of ±0.0 05 .
F. CCD Vision System:
Lens —————— 28 mm OPT lens
Industrial computer ———— PC
Monitor———— Dell 1 7- inch
Image acquisition method : two sets of 5 million pixel CCD digital cameras
Detailed Images
Printing samples
Technical Service
1.After-sales service methods: regular or irregular visits for maintenance, operation and technical training.
2.After-sales service costs: During the warranty period, our company will bear the cost; after the warranty period, our company will charge for accessories.
3.Service Content:
A.If there are any quality problems with equipment accessories, they will be replaced free of charge within two years.
B.We have a thick film printing proofing workshop, which can provide customers with pre-sales and after-sales proofing services.
C.If the equipment fails and the problem cannot be solved through telephone communication after receiving a phone call , our company will arrive at the site within 24 hours to solve the problem .
D.After-sales service is not only about equipment repair and maintenance, but also includes full and dedicated support for process technology. Our company's process technicians can conduct on-site technical training and provide a full set of thick film printing process technology, information and equipment solutions .
