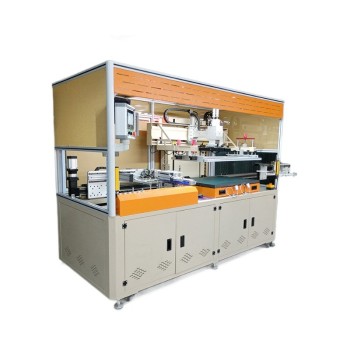

Taoxing Automatic CCD Screen Printing Machine High Precision Flat Printer CCD4060
- group name
- Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-CCD4060
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:40:14 GMT
Paramtents
Model TX-4060CCD
Max printing area 400X600mm
Table size 500x700mm
Printing Speed 400Pcs/h
Max screen frame 750x1080mm
Stacking Height 300mm
Work-Piece Thickness 0.1-2mm
Machine Weight 2200kg
Worktable Displacement ±5mm
Power Supply AC380V/50Hz
Machine Dimension 3500*1100*2050mm
Machine Weight 950KG
Packging & Delivery
- 360cm x120cm x208cm
-
Min Order1 set
Briefing
Fully automatic CCD registering screen printing machine is suitable for precise screen printing capacity type touch panel, ITO conductive glass, ITO conductive film, blood sugar tester, EL panel, etc.
Detailed
Introduction Fully Automatic CCD Registering Screen Printing Machine
Automatic CCD image registration screen printer for highest demands, equipped with CCD camera system and movable printing table for high-quality printing on flat materials such as EL foils, LGP boards, BEF films, touch screens, membrane switches, flexible printed circuits, etc.
* For product and process development
* Designed for selective coatings such as printed electronics, solar cells, RFID and organic electronics
* Precise alignment of single and multi-layers
* Minimal setup time for screen, substrate and print media
* Simple parameter control and precise documentation
Features
A. Full automatic system, with auto loading and unloading device for improving production yield rate.
B. PLC programming, touching screen, simple to operate, easy to use.
C. LED Control panel is available for any position by rotating the hunger, easy to operate.
D. CCD auto-alignment system ensure accurate printing, the aligning accuracy within +0.01mm, to provide excellent function.
E. Top servo motors drive printing fast and smooth, stable and quiet.
F. Multi-valued image processing
G. Machine components top configuration
H. Anti-static bar and anti-dust rollers is optional.
I. Fault self detection system with emergency switch and safety protection, and alarm light, etc.
Specification Fully automatic CCD registering screen printing machine
Model | TX-CCD4060 | |||||||
Table Size | 500x700mm | |||||||
Substrate Thickness | 0.1-2mm | |||||||
Max Printing Area | 400*600mm | |||||||
Min Printing Area | 400x400mm | |||||||
Productivity | 400 pcs/h | |||||||
Max Frame O/D Size | 750x1080mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 5.5kW | |||||||
Air Exhaustion | 15L/min | |||||||
Machine Dimension | 3500*1100*2050MM | |||||||
Machine Weight | 950kg | |||||||
Details picture
Application Fully automatic CCD registering screen printing machine
Membrane Switch
mobile phone screen
Flexible circuit board
