Taoxing Pneumatic Flat Screen Printer TX-400M Manual Saw Blade Logo Printing Machine
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-400M
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 18 Jan 2025 11:56:14 GMT
Paramtents
Max Printing Area 360*250mm
Max Print Area Oval 580*350mm
Printing Speed 1200 pcs/hour
Max. screen frame size 650*320mm
Printing Cycle Speed Saw Blade
Air pressure 960*900*1380mm
Application 120KG
Dimensions 220V/50HZ/20W
Weight 180KG
Voltage 220V/110V
Packging & Delivery
-
Min Order1 set
Briefing
This series of curved screen printers are suitable for high-precision printing of surface patterns and characters on various cosmetic containers, pharmaceutical containers, food containers, electronic devices, toys, and cases.
Detailed
Introduction TX-400M Pneumatic Flat Screen Printer
Application for Semi Auto Flat Screen Printing Machine
This series of curved screen printers are suitable for high-precision printing of surface patterns and characters on various cosmetic containers, pharmaceutical containers, food containers, electronic devices, toys, and cases.
Specification
Main parameters
Model: TX-400M
Max.Printing Area：360*250mm
Air pressure：5bar
Power: 220V/50HZ/20W
Max.Printing Speed: 1200（PCS/H）
Max.Screen frame: 580*350mm
Machine size: 960*900*1380mm
Gross weight: 120(KG)
Features and Performance
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;
4.Printing stroke and speed are adjustable to meet different requirements;
5.auto-balance scraper assures the equalization of printing pressure.
6.Fine adjustment available on worktable’s plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.
7.The scraper can be raised independently, makes it convenient and easy to change and clean the frame.

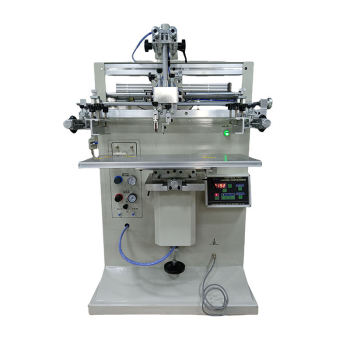

Appearance pictures
Printing sample
