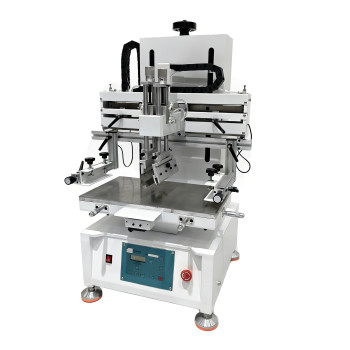

Desktop Pneumatic Flatbed Screen Printing Machine TX-3050SD for Glass and Plastic Panel
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-3050SD
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Thu, 25 Dec 2025 23:12:30 GMT
Paramtents
Printing Thickness ≤80mm
Max printing area 250*400mm
Air pressure 4.0～6.0 kfg/c㎡
Platform size 300*500mm
Rated voltage/Power 220V/50HZ/50W
Max size of screen frame 500*700mm
Printing speed 1000pcs/h
Package size 700*700*1050mm
Weight 120KG
Model TX-3050SD
Packging & Delivery
- 70cm x70cm x110cm
-
Min Order1 set
Briefing
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
Detailed
Introduction of Desktop Pneumatic Flatbed Screen Printing Machine
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
Specification
Model: TX-3050SD
Printing Thickness: ≤80mm
Max printing area: 250*400mm
Air pressure: 4.0～6.0 kfg/c㎡
Size of printing table: 300*500mm
Rated voltage/Power: 220V/50HZ/50W
Max size of screen frame: 500*700mm
Printing speed: 1000pcs/h
Packing size: L700*W700*H1050mm
Weight: 120KG
Configuration Instructions
1. Employs a micro-controller in conjunction with a touch-sensitive panel for program compilation; the control panel is clear, easy to operate, and displays in both Chinese and English.
2. A four-digit counter tracks the number of prints; clearly displays the current production output.
3. All-cast aluminum body with a metallic paint finish.
4. Dual-column lifting structure for stable and high-precision operation.
5. Pneumatic screen cleaning device; simple and convenient, eliminating the need for manual print head lifting; one-button screen cleaning.
6. The screen frame's up/down movement and the printhead's left/right movement are both driven by cylinders.
7. Left/right travel is adjustable, with photoelectric switch limiters.
8. The doctor blade/ink return blade angle is arbitrarily adjustable.
9. A doctor blade constant pressure device ensures stable pressure during printing.
10 .(1)The worktable can be finely adjusted in terms of forward/backward movement, left/right movement, and rotation angle; 1. The screen frame can be adjusted forward/backward movement, left/right movement, horizontal movement, and height;
(2) The suction stainless steel tabletop can adsorb various film products;
(3) Equipped with Taiwan CEC hydraulic dampers in all directions to effectively eliminate printing vibration;
(4) The machine operates quickly, smoothly, and with low noise;
(5) Operating mode selection: fully automatic | semi-automatic | manual;
(6)Operation method: panel and foot switch . Two operating methods .
Machine Details
Printing Samples
PCB
Glass Panel
Metal nameplate
