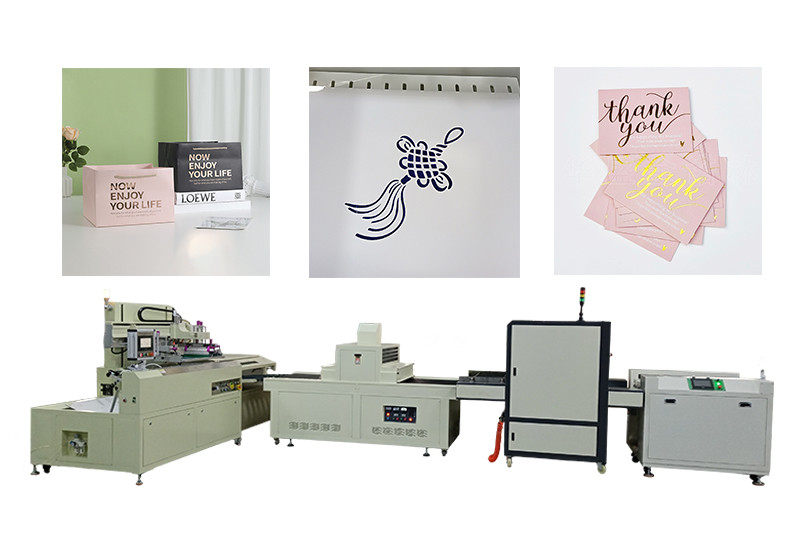

Fully Automatic UV Screen Printing Curing and Cold Stamping Production Line for Gold and Silver Cardboard
- group name
- Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-UV1160-5070L
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 27 Jan 2026 21:11:50 GMT
Paramtents
Maximum stamping width 66CM
Hot stamping speed 0~15m/min
Stamping temperature 60~140℃
Total power 6KW
Air pressure 0~8 Mpa
Power supply 380V/50HZ
Total weight 3000KG
External dimensions L7650*W3450*H1900mm
Packging & Delivery
- 780cm x350cm x190cm
-
Min Order1 set
Briefing
This fully automatic cold foil machine is suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
Detailed
Introduction Automatic UV Screen Printing Curing and Cold Stamping Machines
Suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
Main performance characteristics
1. Widely used in ordinary aluminum foil and special cold stamping aluminum foil;
2. The equipment uses a fully automatic servo motor step-skipping function to save aluminum foil materials;
3. The hot stamping pattern can be hot stamped multiple times and set to hot stamp continuously;
4. Can be connected to various semi-automatic and fully automatic screen printing machine production lines;
5. Cold stamping speed: 0-1500 sheets per hour;
6. This cold stamping machine relies on the printing screen hot stamping varnish to be completely cured before heating, and hot stamping does not require secondary UV curing;
7. It can also be used as a partial UV laser embossing transfer film.
Specification
Fully-automatic screen printing machine
Machine Model: TX - 5070L
Printing thickness: 0.05-3mm
Printing size: 500*700 mm
Printing pressure: 0.4-0.6Mpa
Platform size: 700*850 mm
Voltage/Power: 380V/50HZ /5.0KW
Maximum screen frame: 850*1150mm
Screen printer dimensions: L2250*W1250*H1800mm,
Discharger dimensions：
L1600*W1650*H1200mm
Printing speed: 600-900 pcs/h
Gross Weight: 800 KG
UV curing machine
Machine Model： TX-800UV
Belt width： 800mm
UV lamp power ：2.0KW*2
Overall length：2500mm
Power： 380V / 4.0KW
Conveyor belt speed： 0-25m/min
Outer diameter： 130*145cm
Machine weight： 300KG
Automatic Stepwise Cold Stamping Machine
Machine Model: TX-UV1160-190
Usage: UV screen printing hot stamping
Hot stamping wide： ≤1050mm
Hot stamping speed： 0-15m/min
Hot stamping temperature： 60-140℃
Total Power： 8KW
Pressure: 0-8Mpa
Power supply" 380V/50Hz
Total weight: 750Kg
Dimensions: 2300X1660X1750mm
Automatic Material Collector
Machine Model: TX-SLJ650
Usage: Applicable to the collection and stacking of materials such as cardboard, PVC sheets, and PET films.
Applicable material thickness： 0.2-1mm
Material collection size：Min480*320mm--Max 650*480mm
Feed height: 895±25mm
Maximum collection speed：1500pcs/hr
Total Power：2.0KW
Pressure: 0-8Mpa
Power supply: 380V/50Hz
Total weight: 100Kg
Dimensions: 1150*1080*895mm
Details image
Printing sample
