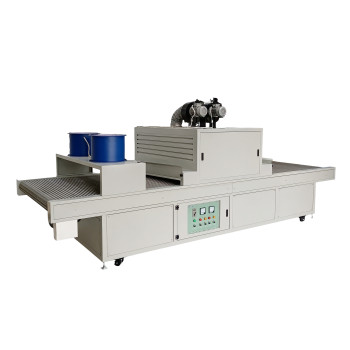

Taoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet Printing

Taoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet Printing
Taoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet PrintingTaoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet PrintingTaoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet PrintingTaoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet PrintingTaoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet Printing
group name
UV Curing Machine
Min Order
1 set
brand name
TAOXING Screen Printing Machines Manufacturer
model
TX-1300UV
Nearest port for product export
Shanghai, Ningbo, Shenzhen, Yiwu
Delivery clauses under the trade mode
FOB, CFR, EXW
Acceptable payment methods
T/T, D/P D/A, Credit Card, PayPal, Westem Union
update time
Mon, 09 Feb 2026 00:32:25 GMT

Paramtents

  • Model TX-1300UV

  • UV Lamp Power 9.6KW*2pcs

  • Conveyor Belt Material Stainless Steel

  • Conveyor Belt Width 1300mm

  • UV Section Length 1500mm

  • Inlet/Outlet Length 1500/1500mm

  • Conveyor Belt Height from Ground 850mm

  • Input Speed 0-5m/min (Adjustable)

  • Drive Type Variable-Speed Motor Drive

  • Control Type Button Switch

  • Overall Dimensions L4500*W1560*H1500mm

  • Weight About 800KG

Packging & Delivery

  • 120cm x100cm x170cm
  • Min Order1 set

Briefing

Taoxing Technology's large-format flatbed UV curing machine with high-power UV lamps enables uniform large-area irradiation, fast curing, low thermal damage. Equipped with intelligent dimming & efficient heat dissipation, it has flexible parameters for diverse processes, stable and easy to operate. Suitable for glass, metal, acrylic, etc., widely used in advertising, building materials, electronics, auto parts, printing & packaging for curing inks, coatings, adhesives, meeting industrial mass production needs.

Detailed

Introduction of TX-1300UV Curing Machine

Servo curved screen printing machine
Application Scope: This UV curing machine is suitable for curing and drying UV printing inks on large-size products such as glass, acrylic, plastic sheets, and metal plates.

Main Performance

1.The UV curing machine features a novel design, attractive appearance, and excellent practical operability, equipped with famous-brand lamps and a variable-speed motor. Its curing effect and technical parameters far exceed similar products; the operability and controllability of the variable-speed motor can fully meet the required demands. The stainless steel conveyor belt is a highly wear-resistant and durable material.

2.The exhaust system adopts a centrifugal fan installed at the top of the machine, providing strong and uniform air extraction for effective heat dissipation and ventilation. In addition, 2 cooling fans are installed at the discharge end to quickly reduce the surface temperature of the cured products, making the patterns and texts on the products more firm.

Product details

Operation Steps


1.Open the lamp cover, adjust the height of the lampshade to the required height for the product, and then close the cover.
2.Turn on the main power switch, and the power indicator light will be on.
3.Turn on the air circulation switch; the air circulation indicator light will be on, and the air circulation motor will start working. (Note: When the air circulation motor is working, clockwise rotation is normal; otherwise, the motor phase needs to be adjusted) Follow the arrow direction.
4.Turn on the variable-speed motor switch, twist the governor, and select an appropriate speed to suit the product.
5.Turn on the UV lamp switch; the ammeter will display the corresponding current of the lamp's power (when turning off and then on the lamp, it is necessary to wait for the lamp to cool down before restarting).
6.After completing the work, first turn off the UV lamp, then the variable-speed motor, followed by the air circulation switch, and finally the main power switch.
7.The top air circulation motor generally starts rotating 2 minutes after the lamp is turned on. (Note: This function is pre-set and does not require additional settings)
