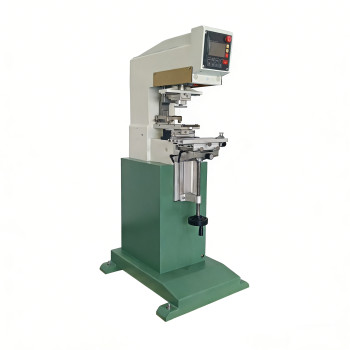

TXDK-115-90 Electric Single-Head Single-Color Ink Cup Pad Printer
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TXDK-115-90
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 21 Mar 2026 23:56:29 GMT
Paramtents
Machine Model TX DK-115-90
Number of printable colors Single color
Steel plate dimensions L100*W234mm
Worktable dimensions L275*W115 mm
Printing area L70*W70 mm
Maximum workpiece height 150mm
Forward and backward travel 115mm
Vertical travel 80mm
Printing speed 1500 prints/hour
Power supply 220V / 110V 50/60HZ 50W
Body dimensions L650*W560*H1250mm
Packaging dimensions L750*W650*H1420mm
Net weight 70kg
Gross weight 100kg
Packging & Delivery
- 120cm x100cm x170cm
-
Min Order1 set
Briefing
Electric monochrome ink cup pad printing machine is suitable for industries such as electronics, hardware, plastics, toys, stationery, and medical. It can print monochrome patterns, text, and logos on flat, curved, and irregular surfaces such as plastics, metals, and glass.
Detailed
Basic parameters:
Machine Model: TX DK-115-90
Number of printable colors: Single color
Steel plate dimensions: L100*W234mm
Worktable dimensions: L275*W115 mm
Printing area: L70*W70 mm
Maximum workpiece height: 150mm
Forward and backward travel: 115mm
Vertical travel: 80mm
Printing speed: 1500 prints/hour
Power supply: 220V / 110V 50/60HZ 50W
Body dimensions: L650*W560*H1250mm
Packaging dimensions: L750*W650*H1420mm
Net weight: 70kg
Gross weight: 100kg
Features:
1. Hall effect magnetic encoder control system with touch screen interface, simple and convenient to operate.
2. Equipped with a built-in four-digit automatic counter. Facilitates production capacity statistics.
3. The machine frame is made of high-quality aluminum alloy, which is lightweight and sturdy.
4. The closed-loop, non-inking system is environmentally friendly and improves ink utilization .
5. Precision closed-loop motor control for each action, digital stroke adjustment, convenient machine adjustment, and precise operation.
6. You can dip the ink twice before printing once to obtain a larger amount of printing ink, resulting in a thicker ink layer.
7. Allows for blank lines before and after to prevent ink from drying out during short breaks.
