Semi-Automatic Flat Screen Printing Machine TX-40150ST For Acrylic Panels

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-40150ST

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Mon, 18 May 2026 13:40:00 GMT

contact supplier

Paramtents

Printing color Single color
Operating mode Semi-automatic
Printing speed 800pcs/hr
Maximum mesh frame size 700*1800mm
Printing size 400*1500mm
Printing Thickness 50mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ /3.0KW
Dimension 2100*900*1740m
Printing type Screen Printing Machine
Weight 700 KG

Packging & Delivery

210cm x900cm x174cm
Min Order1 set

Briefing

This 40150ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.

Detailed

Introduction of TX-40150ST Semi-automatic Flat Screen Printing Machine

Application:

This TX-40150ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.

Main performance

① Vertical structure, the vertical lifting of the screen is driven by a variable frequency electric motor, and the left and right movement of the printing head is driven by a variable frequency electric motor.

② The microcomputer control circuit uses independent motors to drive both printing and screen lifting .

③ The switching of the printing /return ink blade holder is driven by a Taiwanese brand cylinder , with the stroke controlled by a photoelectric eye and independently calibrated.

④ Three modes are set up: manual, semi-automatic, and fully automatic, with digital control of printing indirect time.

⑤ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

⑥ The left and right mesh clamps are equipped with double guide posts and a plate spacing adjustment device for easy adjustment.

Specification

Model			TX-40150ST
Table Size			500*1500mm
Substrate Thickness			50 mm
Max Printing Area			400*1500mm
Printing speed			1000 pcs/h
Maximum screen frame size			700*1800mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /3.0KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			21009001740mm
Machine Weight			700KG

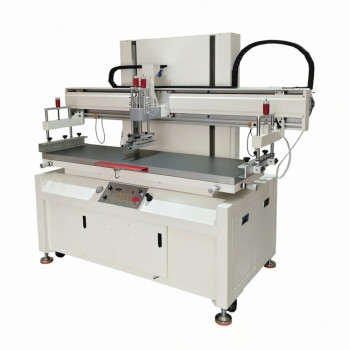

Machine image

Printing samples
