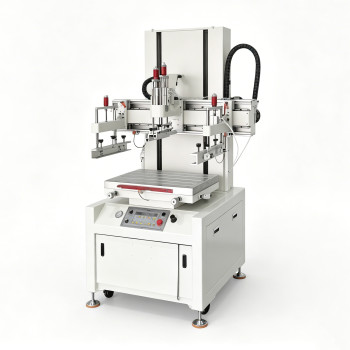

T-Slot Heightened Electric Flatbed Screen Printing Machine TX-4060ST For Suitcase and Plastic Box
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-4060ST-T
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Tue, 26 May 2026 06:51:46 GMT
Paramtents
Printing color Single color
Operating mode Semi-automatic
Printing speed 800 pcs/hr
Maximum mesh frame size 600*1000mm
Printing size 400*600mm
Printing Thickness ≤300mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power AC220V / 2.5 KW
Dimension L1200*W900* H1950mm
Printing type Screen Printing Machine
Weight 398KG
Platform size 500*700mm
Printing accuracy ± 0.02mm
Packging & Delivery
- 130cm x100cm x2050cm
-
Min Order1 set
Briefing
This 4060S-T type groove heightened flat screen printing machine is suitable for positioning printing of cuboid products such as plastic parts, sheet metal parts, storage boxes, and wooden boxes .
Detailed
Introduction of TX-4060ST-T Slot Heightened Electric Flatbed Screen Printing Machine
Application:
This 4060ST-T type groove heightened flat screen printing machine is suitable for positioning printing of cuboid products such as plastic parts, sheet metal parts, suitcase,storage boxes, and plastic boxes .
Main performance
1. Vertical structure, the screen moves vertically up and down, and the printing head moves left and right.
2. The printing and screen printing elevators use independent drive sources, ensuring coordinated movements and stable, adjustable speeds.
3. The printing platform is equipped with precision torque handles in both the horizontal and vertical directions, ensuring accurate precision and convenient color registration.
4. Set manual/semi-automatic/default printing mode, with digital control of automatic printing interval time (1~9 seconds).
5. The independently designed printing head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.
6. The left and right mesh clamp arms are equipped with a screen spacing adjustment device for easy adjustment.
7. The nurse adjusts the angle and balance of the scraping and ink return processes.
8. The machine is equipped with a screen distance adjustment handwheel at the rear, which can quickly adjust the screen distance.
9. The machine is equipped with safety protection devices, consistent with those of the safety department, to ensure the safety of workers during operation.
Specification
Model | TX-4060ST-T | |||||||
Platform Size | 500*700mm | |||||||
Substrate Thickness | ≤50 mm | |||||||
Max Printing Area | 400*600mm | |||||||
Printing speed | 800 pcs/h | |||||||
Maximum screen frame size | 600*1000mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ /2.5KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | L1200*W900*H1950mm | |||||||
Machine Weight | 398KG | |||||||
Machine image
Printing Samples
Configuration Instructions
① The machine is controlled by a microcomputer .
② The circuit uses Delixi AC contactors and Philicos photoelectric proximity switches.
③ The printing process uses a Taiwanese brand geared motor and a Taiwanese brand frequency converter to control the printing drive.
④ The printing doctor blade and ink return blade are controlled by pneumatic components from a Taiwanese brand .
⑤ The left and right horizontal scraping uses HIWIN precision linear guides made in Taiwan.
⑥ The printing plate is filled with an aluminum honeycomb structure, with a hard anodized surface and suction holes .
After-sales service
①support for all products shipped from our factory .
②After installation and commissioning, it comes with a one-year free warranty (for consumable parts and damage caused by human error), and lifetime maintenance.
③We conduct regular visits for maintenance, on-site operation, and technical training.
④After-sales service content:
▲In case of a malfunction, first try contacting the equipment by phone. If the problem cannot be resolved, our company will arrive on-site as soon as possible to resolve it.
▲After-sales service includes not only equipment repair and maintenance, but also dedicated support for process technology. Our technical staff can provide on-site technical training and offer screen printing process technology, information and equipment solutions.
▲Professional technicians will visit users periodically to monitor the usage of their equipment.
▲Repair and maintenance of screen printing equipment and auxiliary equipment.
▲Design and customize screen printing equipment and auxiliary equipment for special products.
