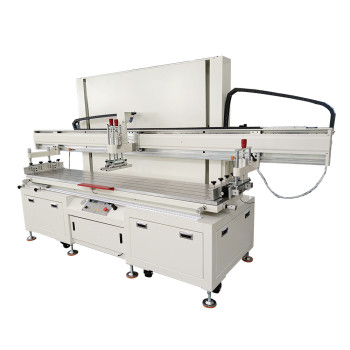

TX-40220ST Semi-Automatic Flat Screen Printing Machine for Long Strip Plastic Part

group name: Semi-Automatic Flat Screen Printing Machine

Min Order: 1 set

brand name: TAOXING Screen Printing Machines Manufacturer

model: TX-40220ST

Nearest port for product export: Shanghai, Ningbo, Shenzhen, Yiwu

Delivery clauses under the trade mode: FOB, CFR, EXW

Acceptable payment methods: T/T, D/P D/A, Credit Card, PayPal, Westem Union

update time: Mon, 15 Jun 2026 22:43:25 GMT

contact supplier

Paramtents

Printing color Single color
Operating mode Semi-automatic
Printing speed 500 pcs/hr
Maximum mesh frame size 600*2400mm
Printing size 400*2200mm
Printing Thickness 50mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ / 4.5KW
Dimension 3000*800*1900m
Printing type Screen Printing Machine
Weight 1500 KG

Packging & Delivery

300cm x800cm x1900cm
Min Order1 set

Briefing

This 40220ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.

Detailed

Introduction of TX-40220ST Semi-automatic Flat Screen Printing Machine

Application:

This TX-40220ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.

Main performance

① Vertical structure, the vertical lifting of the screen is driven by a variable frequency electric motor, and the left and right movement of the printing head is driven by a variable frequency electric motor.

② The microcomputer control circuit uses independent motors to drive both printing and screen lifting .

③ The switching of the printing /return ink blade holder is driven by a Taiwanese brand cylinder , with the stroke controlled by a photoelectric eye and independently calibrated.

④ Three modes are set up: manual, semi-automatic, and fully automatic, with digital control of printing indirect time.

⑤ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

⑥ The left and right mesh clamps are equipped with double guide posts and a plate spacing adjustment device for easy adjustment.

Specification

Model			TX-40220ST
Table Size			500*2300mm
Substrate Thickness			50 mm
Max Printing Area			400*2200mm
Printing speed			550 pcs/h
Maximum screen frame size			600*2400mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /3.0KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			30007001900mm
Machine Weight			1500KG

Machine image

Printing samples
