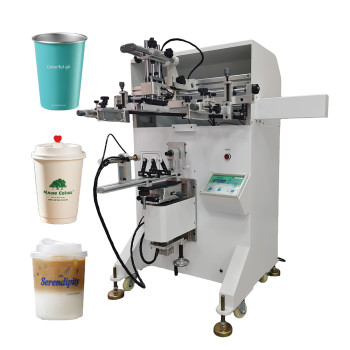

New 400SM Semi-automatic Dual-Purpose Curved Surface Flat Screen Printing Machine for Cups Food Containers
- group name
- Curved Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-400SM
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Mon, 27 Jul 2026 09:59:39 GMT
Paramtents
Printing color single color
Operating mode semi-automatic
Printing speed 1200pcs/h
Maximum mesh frame size 400*600mm
Maximum Print Size Cylindrical Φ110*L200mm， Plane 300*200 mm
Maximum print Length ≤200mm
Air pressure 4.0~6.0 kfg/cm2
Application area cups, bottles, tubes, mugs, jars
Product name Cylindrical screen printing machine
Dimensions(L*W*H) 950*950*1250mm
Net Weight 115KG
Model TX-400sm
Print taper Forward ≤15°, Negative ≤7°
Packing dimensions 1000 *1000*1400 mm
Packging & Delivery
- 100cm x100cm x140cm
-
Min Order1 set
Briefing
This flat and curved surface screen printing machine can be widely used for various cosmetic containers, pharmaceutical containers, food containers, electronic components, toys, machine casings, etc.
Detailed
We have two colors of white and blue to choose from, these two regular models are basically in stock.
Application
This flat and curved surface screen printing machine can be widely used for various cosmetic containers, pharmaceutical containers, food containers, electronic components, toys, machine casings, etc.
Specification
|
Product name
|
Cylindrical screen printing machine
|
|
Product model
|
TX-400SM
|
|
Application area
|
cups, bottles, tubes, mugs, jars
|
|
Printing Speed
|
1500 pcs/h
|
|
Maximum Print Area Round
|
φ70mm
|
Maximum Print Area Oval | Arc Length 200mm |
Maximum print Length | 200mm |
Maximum Screen Frame Size | 400*600mm |
Air pressure: | 4.0~6.0 kfg/cm² |
Voltage | 220V/50HZ/20W |
Dimensions(L*W*H) | 950*950*1250mm |
Net Weight | 115KG |
Printing Samples
