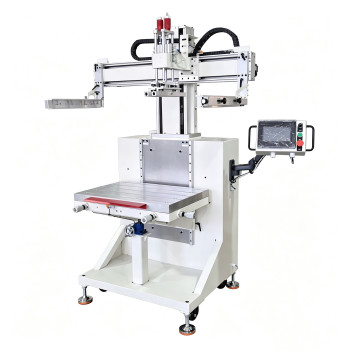

High Precision L -Type Dual Servo Flat Screen Printer Industrial Screen Printing Machine For Metal Box
- group name
- Semi-Automatic Flat Screen Printing Machine
- Min Order
- 1 set
- brand name
- TAOXING Screen Printing Machines Manufacturer
- model
- TX-4060SF-L
- Nearest port for product export
- Shanghai, Ningbo, Shenzhen, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, EXW
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Mon, 27 Jul 2026 16:05:29 GMT
Paramtents
Printing color Single color
Operating mode Semi-automatic
Printing speed 800 pcs/hr
Maximum mesh frame size 700*900mm
Printing size 400*600mm
Printing Thickness ≤600mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power AC220V / 1.2 KW
Dimension L1400 *W900 * H1850 mm
Printing type Screen Printing Machine
Weight 200KG
Platform size 500*700mm
Printing accuracy ± 0.05mm
Packging & Delivery
- 140cm x90cm x185cm
-
Min Order1 set
Briefing
Detailed
The TX-4060SF-L is an L-type dual servo flat screen printing machine built for high-precision positioning printing on cuboid products such as metal boxes, plastic boxes, wooden boxes, electrical enclosures, sheet-metal chassis and medicine boxes. Its dual servo drive and vertical structure deliver repeatable accuracy of ±0.05 mm at up to 800 pcs/hr in semi-automatic mode. Photoelectric-eye stroke control keeps registration tight on every cuboid product. Independent print-head and screen-lift servos deliver stable, adjustable printing speed. Height-adjustable platform with micro-adjust handles for fast, accurate color registration. Manual, semi-automatic and fully automatic, with 1–9 s digital interval control. This L-type dual servo flat screen printer is ideal for high-precision decoration and marking on: Sheet-metal chassis, electrical boxes and enclosures with crisp, durable prints. PP, ABS and PVC boxes printed with stable, smear-free results. Gift and packaging wooden boxes with precise positioning. The vertical structure moves the screen up and down while the print head travels left and right. Independent drive sources for printing and screen lifting ensure coordinated, stable motion. PLC program control with an HMI interface, a servo-driven squeegee for smooth operation, and left/right mesh clamps with screen-gap adjustment make setup and cleanup fast. ±0.05 mm, held by a photoelectric eye and dual servo drive for repeatable registration. Yes. It is designed for cuboid items including metal boxes, plastic boxes, wooden boxes, electrical boxes and sheet-metal chassis. Up to 800 pcs/hr in semi-automatic mode. Yes — manual, semi-automatic and fully automatic modes with digital interval control (1–9 s). Get factory pricing and lead time for the TX-4060SF-L L-type dual servo flat screen printing machine.TX-4060SF-L Type Dual Servo Flat Screen Printing Machine — Overview
Key Highlights of the TX-4060SF-L Dual Servo Screen Printer
±0.05 mm Accuracy
Dual Servo Drive
Vacuum Suction Table
3 Printing Modes
Applications — Screen Printing on Metal, Plastic & Wood Boxes
Metal Boxes
Plastic Boxes
Wooden Boxes
TX-4060SF-L Technical Specifications
Model TX-4060SF-L Printing Size 400 × 600 mm Platform Size 500 × 700 mm Max Mesh Frame 700 × 900 mm Printing Speed 800 pcs/hr Printing Accuracy ±0.05 mm Printing Thickness ≤ 600 mm Printing Pressure 4.0–6.0 kfg/cm² Voltage / Power AC220V / 1.2 KW Dimension L1400 × W900 × H1850 mm Weight 200 KG Operating Mode Semi-automatic (manual / semi / full auto) Printing Color Single color How the L-Type Dual Servo Printer Works
FAQ — TX-4060SF-L Dual Servo Flat Screen Printer
What printing accuracy does the TX-4060SF-L achieve?
Can it print on metal boxes and wood boxes?
What is the production speed?
Does it support automatic operation?
Request a Quote for the TX-4060SF-L Dual Servo Screen Printer
